    ANS-Z41 Footwear Electric Shock Shoe Testing Machine Dielectric Tester

    Ask Lasest Price
    Brand Name : GESTER
    Model Number : GT-KB42B
    Certification : CE,ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets/month
    Delivery Time : 10-30 days
    Price : Factory Price
    • Product Details
    • Company Profile

    ANS-Z41 Footwear Electric Shock Shoe Testing Machine Dielectric Tester

    ANS-Z41 Footwear Electric Shock Shoe Dielectric Resistant Tester


    Application
    ANS-Z41 Footwear Electric Shock Shoe Dielectric Resistant Tester is designed to determine dielectric of various insulation shoes. The current leakage and voltage withstand are measured by applying a voltage at a given frequency to the specimen.



    Standards
    ANS-Z41 section 4, CSA-Z195-14 section 6.5 ,
    AS/NZS 2210.2 section 5.11
    GB12011, GB/T20991 section 5.11,
    ASTM F2412 section 9, ASTM F2413 section 5.5,
    NOM-113-STPS-2009 Section 8.5
    ISO 20345, EN 50321


    Key Specification

    ModelGT-KB42AGT-KB42B
    Voltage increasing rate

    Increasing 1kv/sec,when reaching 75% of set voltage,

    the speed will switch to 100 v/sec

    Output voltage rangeAC: 0~20KVAC: 0~30KV
    Leakage current rangeAC: 20mA
    Transformer capacity500VA600VA
    Test time0.0s~99s
    Test space(L*D*H)58 x 38 x 54cm
    Power supply1∮AC 220V 50/60HZ
    Dimensions (W×D×H)121cm x 48cm x 75cm
    Weight(Approx)160kg

    Accessories

    Standards Accessories


    1pack¢3.5mm stainless steel ball
    1set35KV insulated gloves
    1㎡35KV Insulated pad
    1pcPower line

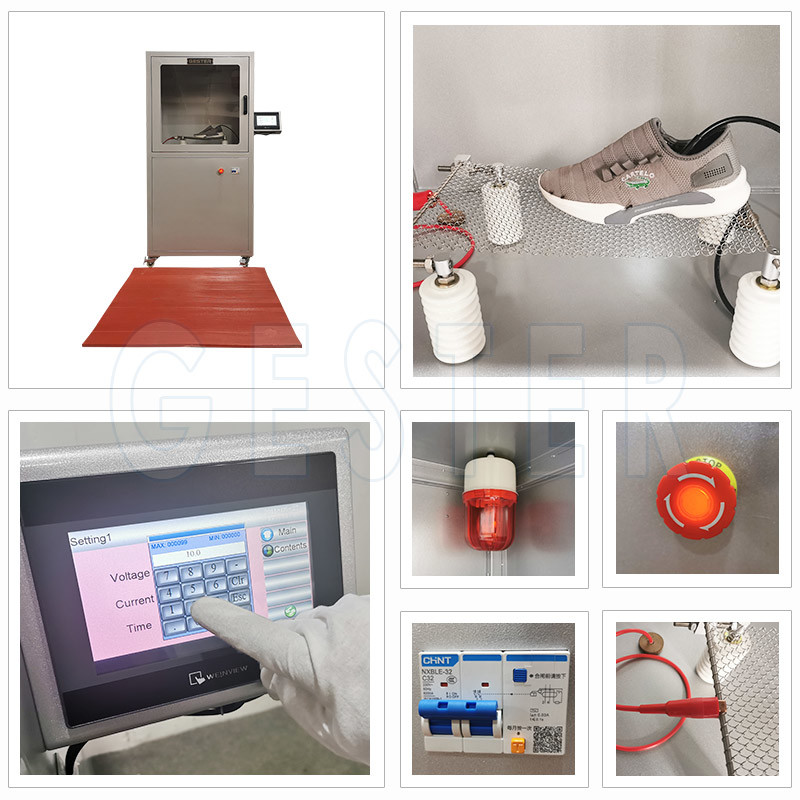

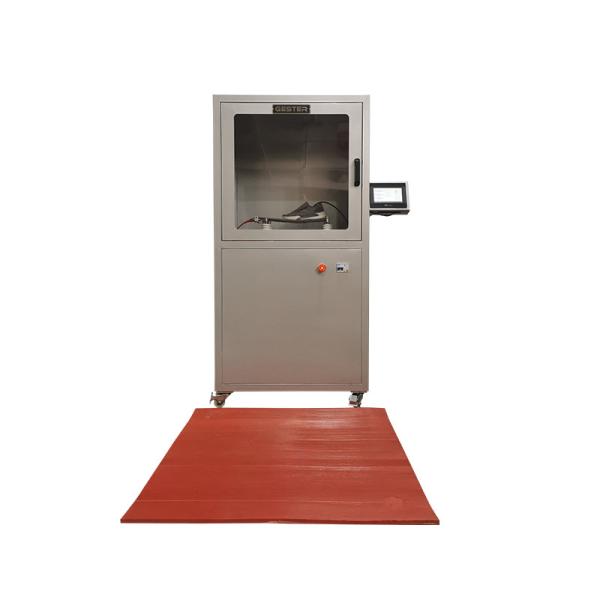

    Product Image

    ANS-Z41 Footwear Electric Shock Shoe Testing Machine Dielectric Tester

    Quality ANS-Z41 Footwear Electric Shock Shoe Testing Machine Dielectric Tester for sale
