    SATRA TM161 Footwear En Shoe Sole Bending Flexing Resistance Tester

    Ask Lasest Price
    Brand Name : GESTER
    Model Number : GT-KB06
    Certification : CE,ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets/month
    Delivery Time : 10-30 days
    • Product Details
    • Company Profile

    SATRA TM161 Footwear En Shoe Sole Bending Flexing Resistance Tester

    SATRA TM161 Footwear En Shoe Sole Bending Flexing Resistance Tester

    Application

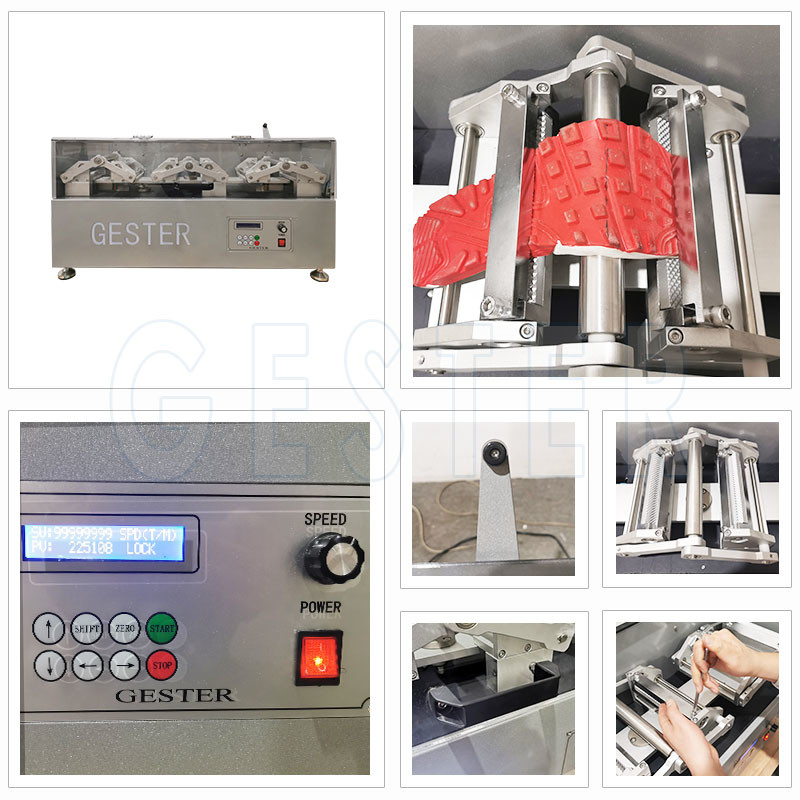

    This tester is used to measure the flexing resistance of shoe soles under continuous movement. Before test, plunge some holes at the maximum bending position, and mount specimen at both grips, one fixed, one movable. Specimen runs flexing owing to the movement of machine. After a certain test cycles, remove the specimen and check its difference of incision length.


    Standards

    SATRA TM161, ISO 17707, ISO20344 section8.4.2 ,

    ISO20347 section 5.8.4, AS/NZS 2210.2 section8.4.2

    GB/T 20991section8.4.2, QB/T 2885, DIN 53543


    Key Specification

    ModelGT-KB06AGT-KB06B
    Test position36
    Bending angle90±2 °
    Bending speed125-150cpm
    Mandrel diameter30 mm
    Clamps apart110±1mm
    Movable fixture stroke41.5 ± 0.5 mm
    CountingLCD, 0-9999999
    Power supply1∮AC 220V 50/60HZ
    Dimensions105x42x55cm105x70x55cm
    Weight80kg100kg

    Accessories

    Standard accessories1setSpanner
    1pcsChisel cutter(2mm)
    1pcsPower line

    SATRA TM161 Footwear En Shoe Sole Bending Flexing Resistance Tester
