    ISO EN344 BS-953 Safety 100J Shoe Testing Machine For Impact Resistance

    Ask Lasest Price
    Brand Name : Gester
    Model Number : GT-KB17A
    Certification : CE,ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets/month
    Delivery Time : 10-30 days
    • Product Details
    • Company Profile

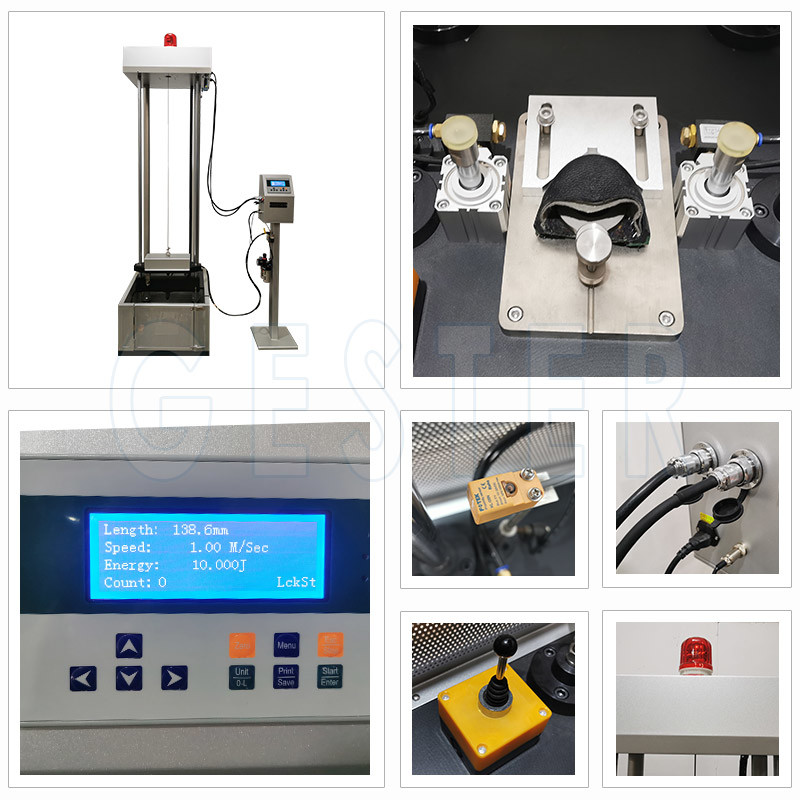

    ISO EN344 BS-953 Safety 100J Shoe Testing Machine For Impact Resistance

    GESTER Best Safety Footwear/Shoes Impact Resistance Testing Machine/Tester

    Application:
    GESTER Safety Footwear/Shoes Impact Testing Machine/Tester is used for impact resistance of safety shoes. Impact steel head of safety shoes by 100J or 200J kinetic energy, and inspect it subsidence to check it quality.

    Feature:
    1. Equip with protection fence, to avoid hazardous objects splash
    2. Control box separate with impactor, to protect personnel security.
    3. Equip with electromagnet absorption device and automatically grab impact head to set height
    Equip with two buffer cylinder, to avoid second impact.


    Standards:
    EN ISO 20344 Section 5.4 and 5.16, AS/NZS 2210.2 Section5.4 and 5.16, CSA-Z195 Section 5.21, ANSI-Z41 Section 1.4.5, ASTM F2412 Section 5, ASTM F2413Section 5.1

    Key Specification

    ModelGT-KB17AGT-KB17BGT-KB17C
    Drop height range0- 1200mm
    Impact energy200±2 J100±2 J101.7±2 J
    Impact hammer

    Wedge, Length 75mm,
    Angle 90°

    Cylinder,
    Diameter 25.4mm

    Impact surfaceCorner radius R3 mmSpherical radius R25.4mmLength 152.4±3.2 mm
    Impact hammer mass20±0.2 kg22.7±0.23kg
    Power supply1∮AC220V 50HZ 5A
    Dimensions(L x W x H)60 x 70 x 220cm
    Weight230kg
    Standards

    EN ISO 20344 Section 5.4 and 5.16,
    AS/NZS 2210.2 Section5.4 and 5.16
    GB/T 20991 Section 5.4 and 5.16,
    BS EN-344-1 Section 5.3
    BS-953 Section 5, ISO 20345
    EN 12568 Section 5.2.2

    CSA-Z195-14 Section 6.2,
    ANSI-Z41 Section 1.4.5 ,
    ASTM F2412 Section 5,
    ASTM F2413 Section 5.1,
    NOM-113-STPS-2009 Section 8.3

    CSA-Z195-14 Section 6.4,
    A STM F2412 Section 7,
    ASTM F2413 Section 5.3,
    NOM-113-STPS-2009 Section 8.6


    Accessories

    Standard accessories1setToecap clamp device
    1pcPower line

    Option accessories

    Air compressor
    Metatarsal protective test clamp device for EN ISO 20344 Section 5.16
