    Safety Fire Burning Projectile 0.75kw Battery Resistance Tester For Flame Resistance

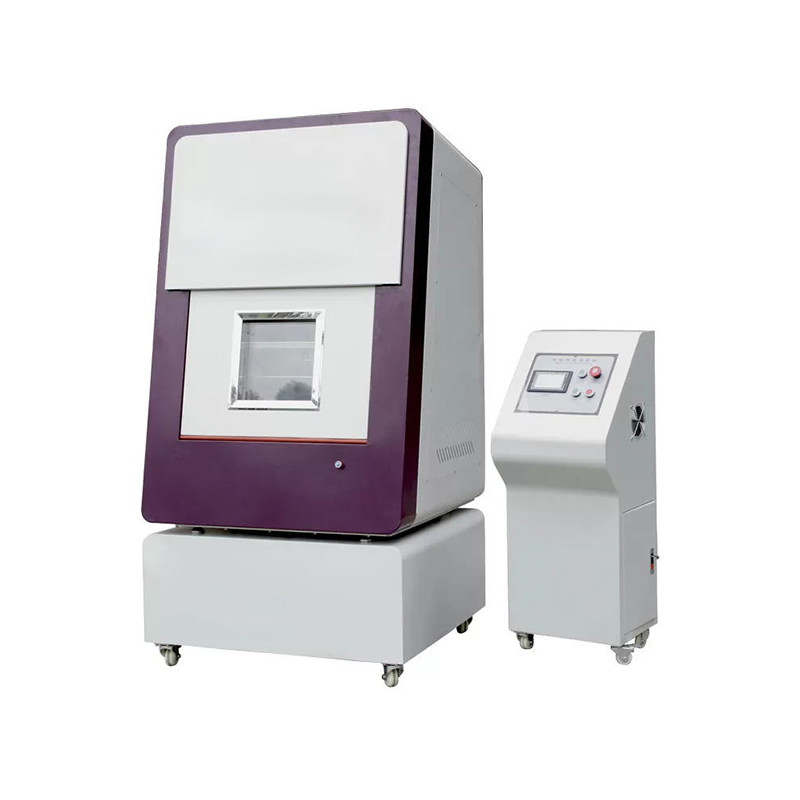

    Battery Safety Fire Burning Projectile Testing Machine

    Application:
    Battery Burning Tester is suitable for lithium battery , battery pack, mobile phone, notebook computer and other small electronic consumer products battery fire resistance/flammability testing. The main function is to observe a series changes and the impact force size produced by exploding after being heated by flames.

    Standards:
    SJ/T11169-1998(eqv UL 1642:1995)
    SJ/T11170-1998(eqv UL 2054:1997)
    UL 1642[13]
    GB8897.4-2002 6.3.2.9
    IEC60086-4:2000

    Key Specifications:
    ModelGT-I07
    Control modePLC human touch interface
    BurnerBunsen burner, nozzle diameter of 9.5mm long about 100 mm
    Flame application time0 ~ 999.9 seconds ± 0.1 seconds
    Test hole diameter102mm
    Test mesh sieveA stainless steel wire with a diameter of 0.43 mm (0.017 inch) was woven into a mesh containing 20 mesh screens.
    Ignition controllerRemote control ignition, test process automatic control
    Remote wire-controlled distance: no barrier, 10 meters
    Remote wire-controlled distanceNo barrier, 10 meters
    Flame on the net screen height38mm
    Test octagonal hood widthThe distance between each pair of 24 "(610mm), octagonal, while eight for the activities of easy to replace and disassemble
    Test octagonal height12 "(305mm)
    Octagonal cover MaterialAluminum mesh, made of aluminum wire with a diameter of 0.010inch (0.25mm) into a mesh containing 16- 18 mesh per inch
    Test sectionStainless steel, one side of the 5mm thick tempered glass, can be witnessed test state, while the top of the protective box with exhaust fan, and set aside external exhaust pipe interface.
    Test protection warehouse volume750 * 750 * 1000mm
    Controller volume200 * 150 * 1000mm
    Combustion gasMethane
    Use power220V, 50 / 60Hz,
    Equipment power0.75Kw
