    PLC Touch Screen ISTA 5KW Drop Test For Packaging

    Ask Lasest Price
    Brand Name : GESTER
    Model Number : GT-LC06
    Certification : CE, ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets/month
    Delivery Time : 10-30 days
    • Product Details
    • Company Profile

    PLC Touch Screen ISTA 5KW Drop Test For Packaging

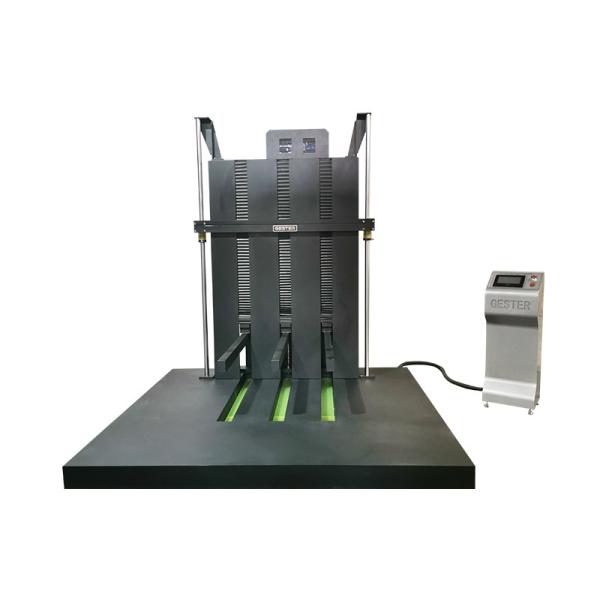

    ISTA Packaging Test Zero Height Drop Tester


    Product Introduction

    Application:

    The drop tester is mainly used to evaluate the influence of the package in the actual transportation, the loading and unloading process, and to evaluate the impact strength and the rationality of packaging design.

    Standards:

    ISTA


    Key Specifications

    Model

    GT-LC06

    Control mode

    PLC touch screen

    Maximum test load

    200kg

    Maximum specimen size

    2000×1000×1000(mm, L×W×H)

    Test height

    0~1200mm adjustable

    Test aspects

    Edge, Angle, Surface

    Drive

    Motor drive

    Protection device

    Induction type protection device

    Material of Impact plate

    45# steel, solid steel plate

    Reading

    Digital

    Bracket structure

    45# steel

    Transmission

    Imported linear slider and copper sleeve, 45# steel

    Accelerating device

    Mechanical(Ensure that the speed of the bracket falls faster than the drop rate of the test product)

    Drop mode

    Electromagnetic and pneumatic integrated

    Power supply

    220V, 50HZ, 5KW

    Weight

    About 1800KG

    Dimension

    2200×1500×2000mm
