    Touch Screen UL 94 Toys Testing Equipment Flammability Test Equipment

    Ask Lasest Price
    Brand Name : GESTER
    Model Number : GT-MC35F-2
    Certification : CE, ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets/month
    Delivery Time : 10-30days
    • Product Details
    • Company Profile

    Touch Screen UL 94 Toys Testing Equipment Flammability Test Equipment

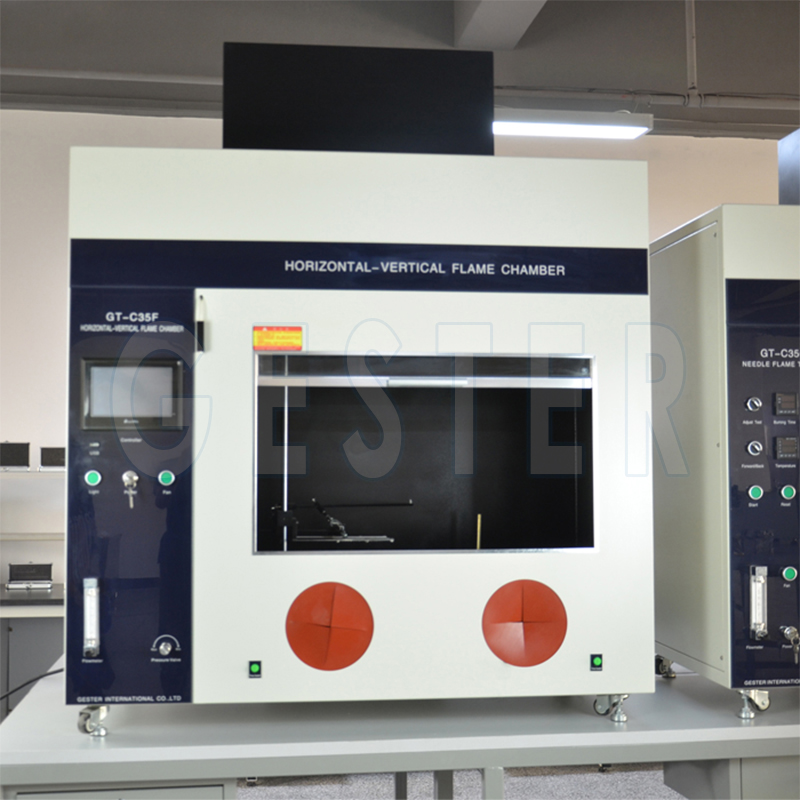

    UL 94 Horizontal and Vertical Flame Chamber

    Application

    Horizontal and Vertical Flame Chamber is using of automobile manufacturing using CNC machining centers 2mm cold plate shape, good looks, high-grade. Outdoor grade powder coating technology, high texture, no discoloration. Import control components, safe and reliable. Horizontal Vertical Flame Chamber is according for ASTM D5025 dedicated burner , Easy for adjust flame height and with stable.

    Standards:

    UL 94

    IEC 60695-11-3

    IEC 60695-11-4

    ISO 9772.3/6722

    ASTM D635/3801/4804/4986

    Control System

    Time controller

    Touch Screen Control

    Differential gauge

    U-pressure direct-reading meter

    Flow meter

    Specific methane flow

    Key Specifications

    Internal dimensions

    120 x 60 x 112cm (WxDxH)

    External dimensions

    120 x 65 x 150cm (WxDxH)

    Inside cubage

    0.8m3

    Flame height:

    15-175mm/min (can be adjustment)

    Gas flowmeter

    20-200ml/min (can be adjustment)

    Gas press

    5-200mm (can be adjustment)

    Flame angle

    0-45degree (can be adjustment)

    Burner height adjust

    50mm

    Sample vertical move distance

    450mm

    Sample horizontal move distance

    180mm

    Burn time

    0-99.99s (can be adjustment)

    After flame time / after glow time

    0.1s-99.99s (can be adjustment)

    Precision

    0.01s

    Main Body Assembly

    Box material

    The test vehicle both inside and outside use of 2mm cold plate CNC forming

    Inside lamp source

    Explosion-proof light ( Osram or Philips 40W halogen lamp)

    Exhaust system

    Standard 180W exhaust fan

    Viewing window

    5mm armoured glass ( 60 x 40cm)

    Design of viewing window

    Adopt principles of electrical counterweight, Mute rail design, weightlessness, without noise

    Transmit mechanism

    Axis linear bearing drive with chrome design

    Clamp design

    Imported anodized aluminum

    Standard accessories

    HB (ASTM D 635, ISO 1210) - Horizontal Burning Test and test fixture

    V-0-1-2 (ASTM D 3801, IEC 60695-11-10) - 50W (20 mm) Vertical Burning Test and test fixture

    Flame height gauge

    Optional accessories

    5VA/5VB (ASTM D 5048, ISO 9772, IEC 60695-11-20) -- 500 W (125 mm) Vertical Burning Test and test fixture

    HBF/ HF 1-2 (ASTM D 4986) - Horizontal Burning Foamed Material Test and test fixture

    VTM-0-1-2 (ASTM D 4804, ISO 9773) - Thin Material Vertical Burning Test and test fixture

    Thermocouple and Temperature Calibration Device

    Medical Absorbent Cotton
