    Castors Durability Testing Machine

    Ask Lasest Price
    Brand Name : GESTER
    Model Number : GT-LB07A
    Certification : CE, ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets/month
    Delivery Time : 10-30 days
    • Product Details
    • Company Profile

    Castors Durability Testing Machine

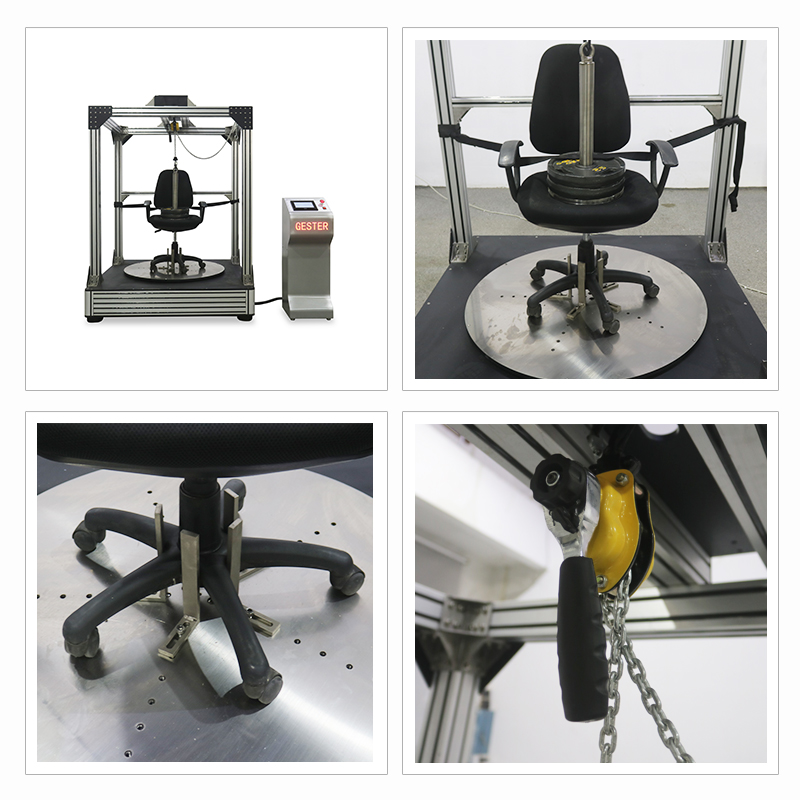

    Chair Swivel and Castors Durability Testing Machine


    Product Introduction

    Application:


    The Chair Testing Machine applies to test all chair types with a swivel seat or with castors.

    And the machine equip with 2 functions:

    1.Chair swivel durability test:The base of the chair shall be secured on a rotating table so that the rotating axis of the chair coincides with the rotating axis of the table. The upper part of the chair shall be loosely fixed in such a way as not to hinder the rotation of the base. Load the seat in loading point with the specified additional load. Then rotate the chair at the specified rate and angle. Change direction after each rotation. Thus,to test the chair swivel structure durability.
    Castors durability test: Load the seat with the specified load,the base and whose upper parts shall be loosely fixed in such a way that there is no rotation of the base but that the natural swivel of the castors during testing are not prevented, thus,to test the castors durability.

    The purpose of this test is to evaluate the ability of the chair to withstand stresses and wear of repeated swiveling.

    Standards:


    EN 1728-2012 Section 6.29 method 1, 7.11 ,7.13 method 1
    ANSI/BIFMA X5.1 - 2017 Section 8 ,
    EN1335-3 -2009 Section 7.3.3, 7.3.5 method 1
    QB/T 2280-2007 Section 6.6.12,


    Key Specifications

    Model

    GT-LB07

    Control method

    PLC Touch screen control

    Rotation speed

    515 round/min

    Rotation angle

    0360o (Angle can be set arbitrarily, and can forward and reverse rotate)

    Test load

    240Lb(109kg), 270Lb(122kg), ( Accumulative type weights)

    Cycle index

    0999999, can be arbitrarily set

    Power supply

    1∮ AC 220V 50Hz 5A

    Dimensions

    100×100×140cm

    Weights

    300Kg

    Accessories:

    Standard Accessories

    GT-LB01-10B BIFMA accumulative type weights

    Caster fixing device

    Base fixing device

    Seat fixing device


    Chair Swivel and Castors Durability Testing Machine
