    BIFMA X5.1 Furniture Testing Machine

    Ask Lasest Price
    Brand Name : GESTER
    Model Number : GT-LB04-1
    Certification : CE, ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets/month
    Delivery Time : 10-30 days
    • Product Details
    • Company Profile

    BIFMA X5.1 Furniture Testing Machine

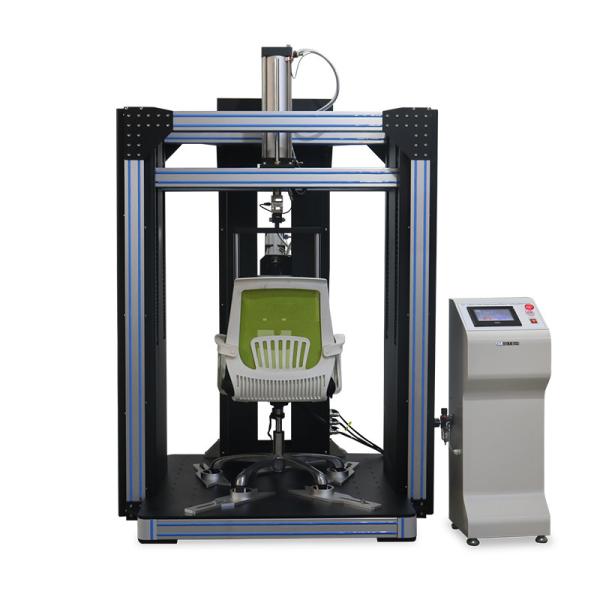

    BIFMA X5.1 Furniture Testing Machine Chair Seating and Back Tester


    Product Introduction

    Application:


    The Chair tester tests the strength and durability of the seats and backrests by simulating the routine use loading of the seat.

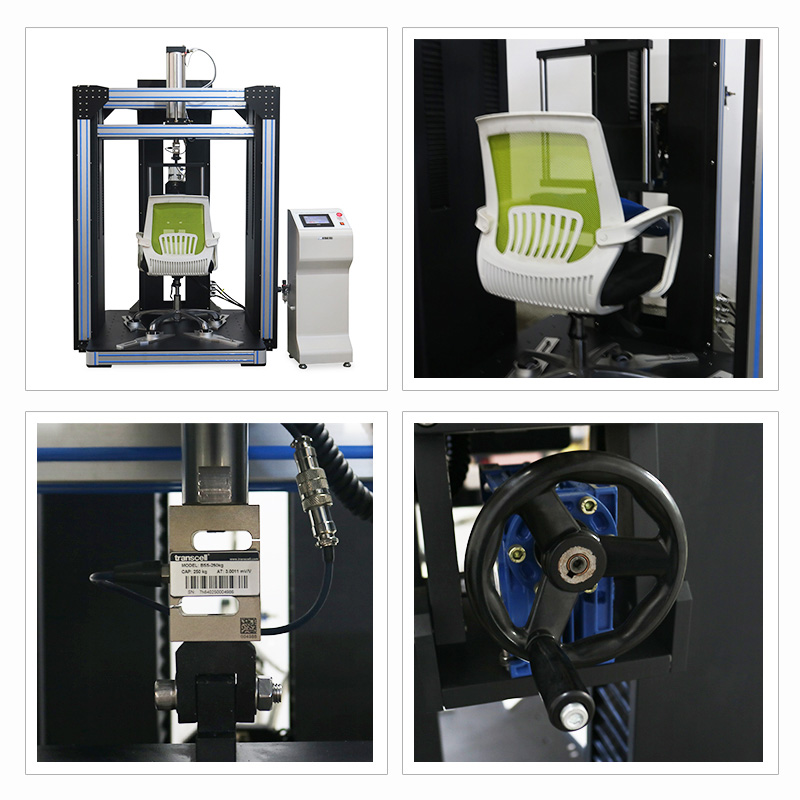

    The Chair Seating and Back Testing Machine is equipped with two drive units, and can be individually controlled to repeatedly load the test points of the seat. Through different parameter settings, the machine can complete the following types of test functions on the seat:
    1. Seat and back static load test.
    2. Seat and back durability test.
    3. Seat front edge static load and durability tests;
    4. Horizontal forward static loading test for backrest.
    5. Headrest static load test,
    6. Legs forward static load test,
    7. Leg lateral direction static load test.
    If the customer additionally purchases the GT-LB01-7 impact hammer for the machine, the following tests can be added: Backrest impact test, armrest impact test.


    Feature:

    1. The main structure of the machine is made of aluminum, beautiful and easy to maintain.

    2. Servo motor drive, test loading control is more accurate, and the noise is even smaller.

    3. Chair Seating and Back Testing Machine: PLC touch screen control makes the operation more convenient.

    4. In addition, the machine loading device using electric control movements, more extensive test space.

    Standards:

    EN 1728-2012 Section 6.4, 6.5, 6.7, 6.12, 6.15, 6.16, 6.17, 7.3, 7.4,7.9, 8.2, 8.4.1,8.5 (6.25, 6.26 optional accessories)
    EN581-2-2015 (corresponding with EN1728-2012),
    EN1335-3 -2009 Section 7.2.1, 7.2.2, 7.3.1
    EN 1729-2-2012 Section 5.3.2, 5.3.3, 5.3.5, 5.3.6, (5.3.8 need the optional accessories)
    ISO 7173-1989 Section 7.1, 7.2, 7.3, 7.5, 7.6, 7.7, 7.8, (7.11,7.12 need the optional accessories)
    GB/T 10357.3 -2013 Section 4.3, 4.4,4.7,4.8,4.10,4.11, (4.13,4.14 need the optional accessories)
    BIFMA X5.1 - 2017 Section 5,6,17 (9,14,15 need the optional accessories)
    EN 16139-2013 (corresponding with EN1728-2012)
    BS5459-2-2000 Section A5.1 (A5.3, A7.4 need the optional accessories)
    QB/T 2280-2007 Section 6.6.4, 6.6.9 (6.6.10, 6.6.11need the optional accessories


    Key Specifications

    Model

    GT-LB04-1

    Working position

    1

    Seat surface load capacity

    2000N

    backrest load capacity

    2000N

    Seat surface height

    15 - 70cm

    Testing time

    0-99999 ( can be adjustment)

    Control method

    PLC touch screen control

    Lifting method

    Automatic lifting

    Power

    1 phase AC 220V 50/60Hz

    Dimension (WxDxH)

    180x150x200cm

    Weight

    500kg

    Standard Accessories

    GT-LB01-1A Loading point template 1 pc

    GT-LB01-2A Seat loading pad 1 pc

    GT-LB01-3 Smaller seat loading pad 1 pc

    GT-LB01-4 Back loading pad 1 pc

    GT-LB01-5 Local loading pad 1 pc

    Stationary fixture 1 pc

    Stops 1 pc

    Optional Accessories

    GT-LB01-7 Impact hammer

    GT-LB01-1B Loading point template

    GT-LB01-2B Seat loading pad

    GT-LB01-10 BIFMA cumulative Weight
