    BS EN 1957 5000N Mattress Product Tester

    Ask Lasest Price
    Brand Name : GESTER
    Model Number : GT-LA08
    Certification : CE, ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200sets/month
    Delivery Time : 10-30 days
    • Product Details
    • Company Profile

    BS EN 1957 5000N Mattress Product Tester

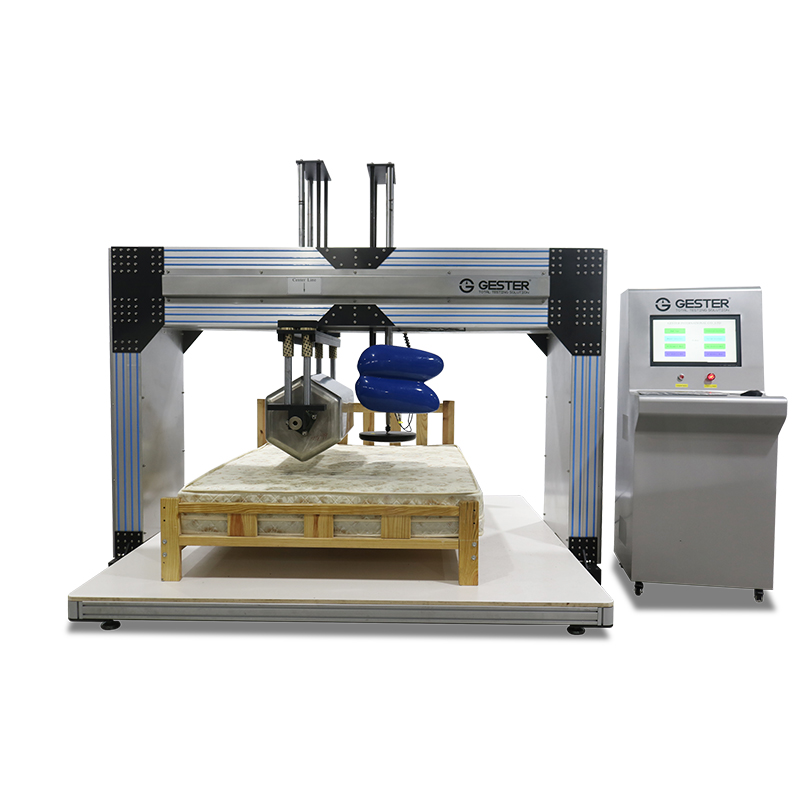

    Mattress Comprehensive Performance Tester GT-LA08


    Product Introduction

    Application:

    This Mattress Comprehensive Tester is the newest design mattress comprehensive performance tester according to EN 1957, EN 1725, QB/T 1952.2, or ASTM F1566 standards.


    In general, the machine is configured with the following four test functions:

    Height loss test: the height loss expresses the change in the height of a test unit caused by the durability test.

    Durability test : test simulating the repeated application of loads and/or movement of components occurring during long-term use and assessing the strength of the article under such conditions. The durability test is a procedure mainly intended to evaluate the change of the properties of the test unit caused by repeated loading.

    Hardness Value & Firmness rating test : the hardness value is determined from load/deflection measurement which be obtained by pressing a load pad into the test unit and measuring the associated value of indentation and force simultaneously. And the firmness rating is used to express the subjective assessment by persons, it is determined form the hardness value upon results from empirical studies.

    Bed edge durability test: apply a force of 1000N for 5000 cycles by means of edge loading pad at the bed edge test point, then measure the height loss .

    Standards:

    BS EN 1957, EN 1725, QB/T 1952.2, or ASTM F1566.

    Feature

    • The whole machine frame made of high quality aluminum, beautiful.
    • This machine control method: computer control.
    • Roller can be electric lift, easy to operate.
    • Motor is Taiwan Delta servo motor, the power sensor is the United States Celtron.
    • The machine is equipped with an alarm device, indicating safe operation.

    Key Specifications

    Model

    GT-LA08A

    GT-LA08B

    Controller

    Computer Control

    Motor

    Servo Motor

    Power sensors

    5000N, American Celtron

    Durability test

    Cylinder Shape

    Round

    Hexagon

    Cylinder Length

    1000 mm

    36±3in(915±75mm)

    Cylinder Weight

    1400 N

    240±10Lb(109±4.5kg)

    Diameter of roller

    300 mm

    17±1in(430±25mm)

    Test speed

    0-20 cpm (adjustable)

    0-20 cpm (adjustable)

    Stroke length

    0--1000mm

    0--1900mm

    Hardness value & Firmness rating test & Height loss test

    Pressure plate diameter

    355 mm

    Pressure plate spherical radius

    R800 mm

    Test speed

    0.001--500 mm/min

    Bed edge durability test

    Test load

    1000 N

    Test cycles

    5000 cycles

    Maintain time

    3±1s

    Power supply

    1∮, AC 220V 50/60Hz

    Dimension (W x D x H)

    280 x 250 x 180 cm

    380 x 250 x 180 cm

    Weight (Kg)

    1000Kg

    1200Kg

    Standards

    BS EN 1957, EN 1725,

    QB/T 1952.2,

    ASTM F1566 ,

    BS EN 1957, EN 1725,

    QB/T 1952.2,

    Standard accessories

    EN Round Roller

    ASTM Hexagon Roller

    Hardness loading pad

    Hardness loading pad

    Edge loading pad

    /

    Option accessories

    /

    EN Round Roller

    /

    Edge loading pad
