    Aluminum 40 Times/Min 2000N Chair Testing Machine

    Ask Lasest Price
    Brand Name : GESTER
    Model Number : GT-LB03S
    Certification : CE, ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets/month
    Delivery Time : 10-30 days
    • Product Details
    • Company Profile

    Aluminum 40 Times/Min 2000N Chair Testing Machine

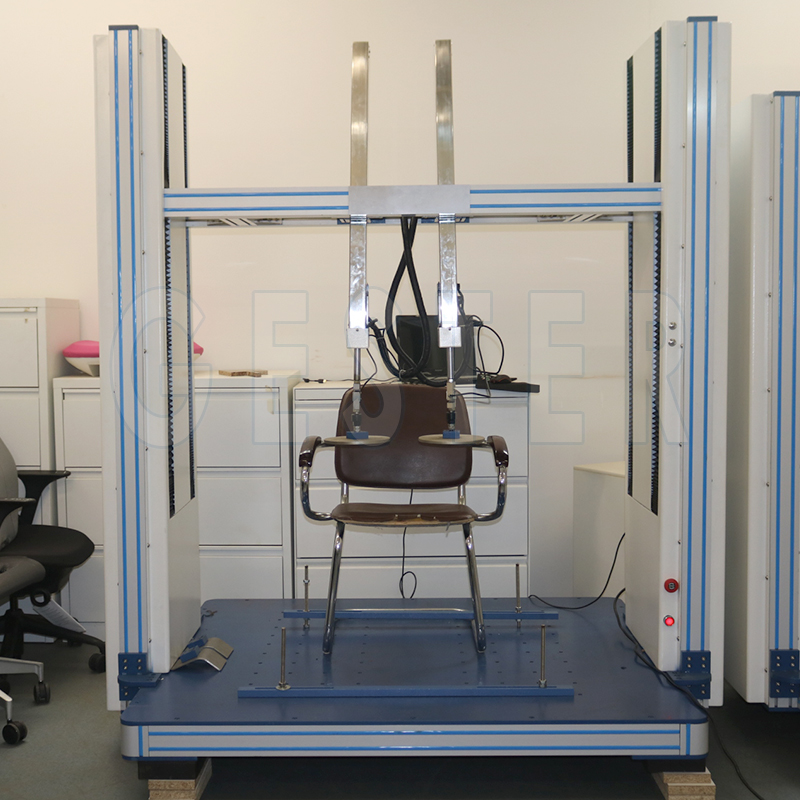

    Chair Armrest and Seat Front Edge Testing Machine


    Product Introduction

    The tester tests the strength and durability of the handrails, seats, or other parts by simulating the loading of the seats during routine use.


    The machine is equipped with two drive units, and can be individually controlled to repeatedly load the test points of the seat. Through
    different parameter settings, the machine can complete the following types of test functions on the seat:

    1. Armrests Vertical static load test;
    2. 10o angle handrail durability test;
    3. Seat front edge static load and durability tests;
    4. Vertical static load test on backrests;
    5. Foot rest static load and durability testing;
    6. Leg rest static load test;
    7. Armrest upward static load test (need to tie the weight test);
    8. WordPad vertical static load and durability test.


    Feature:

    1. The main structure of the machine is made of aluminum, beautiful and easy to maintain.

    2. Servo motor drive, test load control more accurate, and the noise is even smaller.

    3. PLC touch screen control, operation more convenient.

    4. In addition, the machine loading device using electric control movements, more extensive test space.


    Standards:

    EN 1728-2012 Section 6.6,6.8, 6.9, 6.11, 6.12, 6.13,6.14, 6.18,6.20, 6.21 ,6.22, 7.4, 7.5, 7.6, 7.8, 7.10 , 7.12

    EN1335-3 -2009 Section 7.2.1, 7.2.3, 7.2.4, 7.2.6, 7.3.2,7.3.4,

    EN 1729-2-2012 Section 5.3.4, 5.3.9,5.3.11, 5.3.12

    EN581-2-2015(corresponding with EN1728-2012),

    ISO 7173-1989 Section 7.1, 7.4

    GB/T 10357.3 Section 4.3.3, 4.4, 4.6, 4.9,

    QB/T 2280-2007 Section 6.6.5, 6.6.13.2

    BIFMA X5.1 - 2017 Section 10.4,20,22,23(18, 19Load pad(optional accessory) is required)

    EN 16139-2013 (corresponding with EN1728-2012)

    BS5459-2-2000 Section A5.5, A7.3


    Key Specifications

    ModelGT-LB03S
    Load capacity2000N
    Force device stroke0-80cm
    Stroke range60-160cm
    Load Angle0~10o(The angle to the vertical is adjustable)
    Test speed5~40 times/min
    Testing time0-99999 ( can be adjustment)
    Control methodPLC control
    Dimension(WxDxH)150×150×190cm
    Weight600kg
    Power1∮, AC 220V 50Hz
