    GESTER GB 8965.1 Thermal Protection Tester With Cooling System

    Ask Lasest Price
    Brand Name : GESTER
    Model Number : GT-RC02
    Certification : CE, ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets/month
    Delivery Time : 10-30days
    • Product Details
    • Company Profile

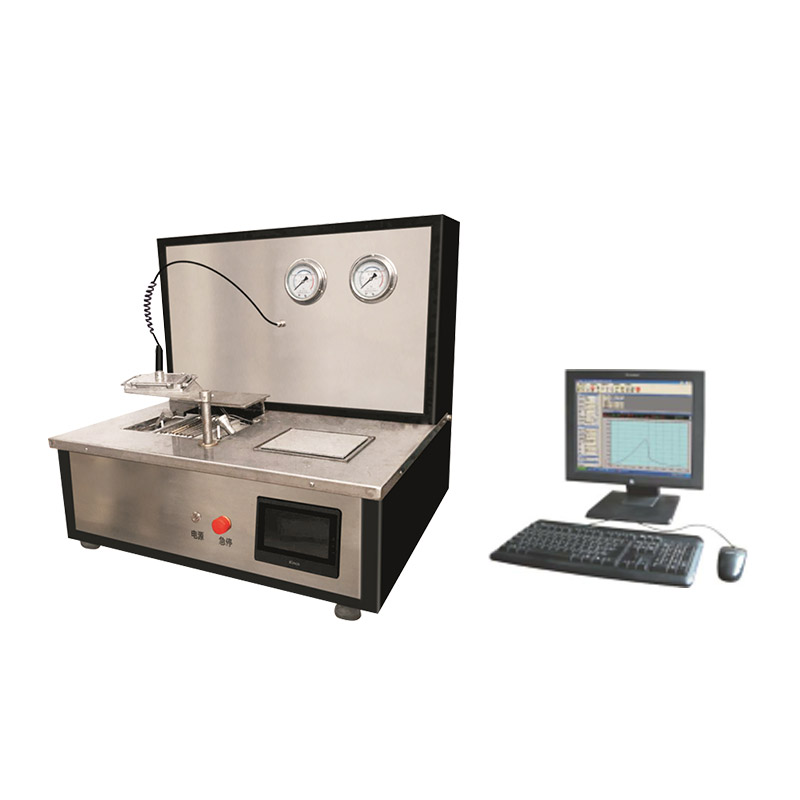

    GESTER GB 8965.1 Thermal Protection Tester With Cooling System

    Protective Suits Testing Equipment TPP Thermal Protection Tester


    Product Introduction

    Application:

    The Thermal Protection Tester is mainly used to measure the thermal insulation performance of flame-retardant protective clothing fabrics exposed to radiant heat sources and convection heat sources to detect the thermal protection performance of protective clothing, safety shoes, gloves, and helmet outer surfaces.


    Standards:

    GB /38302-2019, GB 8965.1, NFPA 1971, ASTM F 2700-08, ASTM F 2703-08, ASTM D4018

    ISO 17492


    Features

    1.Test the TPP and TPE of protective material, display Time-Temperature curve.
    2.TPP Thermal Protection Tester equipped with computer, English & Chinese operation interface, data processing automatically.

    3.Cooling system, can cooling the heat flow meter quickly, improve testing speed.


    Key Specification

    Model

    GT-RC02

    Specimen Size

    150×150mm

    Specimen Radiated Size

    100×100mm

    Radiant Thermal-Flux Source

    9pcs of 500w quartz burner; Interval: 13.0±0.5mm

    (Optional: 14.3±0.5mm for GB 8965.1 Standard)

    Convective Thermal-Flux Source

    2 burners at 20°to 30°angle from the vertical,

    Gas supply: Methane (Purity≥99%) or Propane (Purity≥95%)

    (Optional: 45°for GB 8965.1 Standard)

    Heat Flow Meter

    K-Type Thermocouple wire (diameter ≤0.25mm), Resolution: 0.1℃, Accuracy: 0.7℃

    Data Collection System

    Collect frequency: 10Hz

    Radiant Thermal-Flux

    (13 4)kW/m2[(0.3±0.1)cal/cm2×s]

    Whole Thermal-Flux

    (84 2)kW/m2 [(2.00±0.05)cal/cm2×s]

    Power Supply

    220V 50Hz 5Kw

    Dimension

    930×740×890mm

    Weight

    ≈100kg
