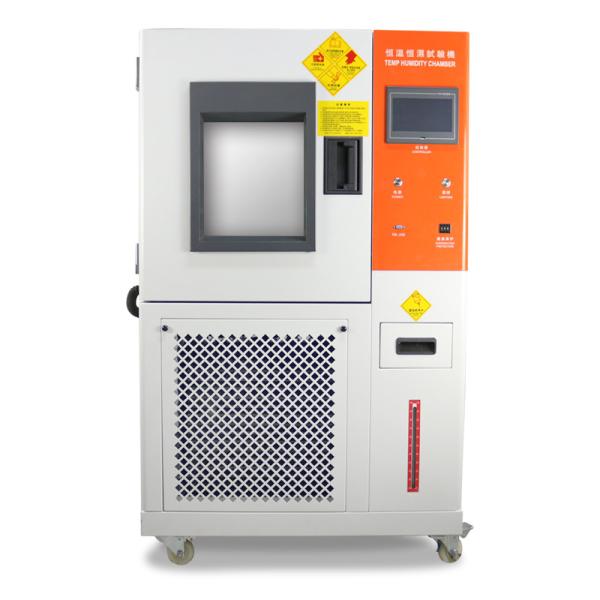

    Programmable 4.5KW GT-C52 Temperature And Humidity Test Chamber

    Ask Lasest Price
    Brand Name : GESTER
    Model Number : GT-C52
    Certification : CE, ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets/month
    Delivery Time : 10-30days
    • Product Details
    • Company Profile

    Programmable 4.5KW GT-C52 Temperature And Humidity Test Chamber

    Programmable Temperature And Humidity Test Chamber GT-C52

    Product Introduction of temperature and humidity test chamber

    Application of Environmental Test Chamber:

    Temperature And Humidity Test Chamber for conditioning of samples prior to testing. It also can be used for a variety of materials of high - low temperature alternating test. The test temperature, humidity and time can be programmed.

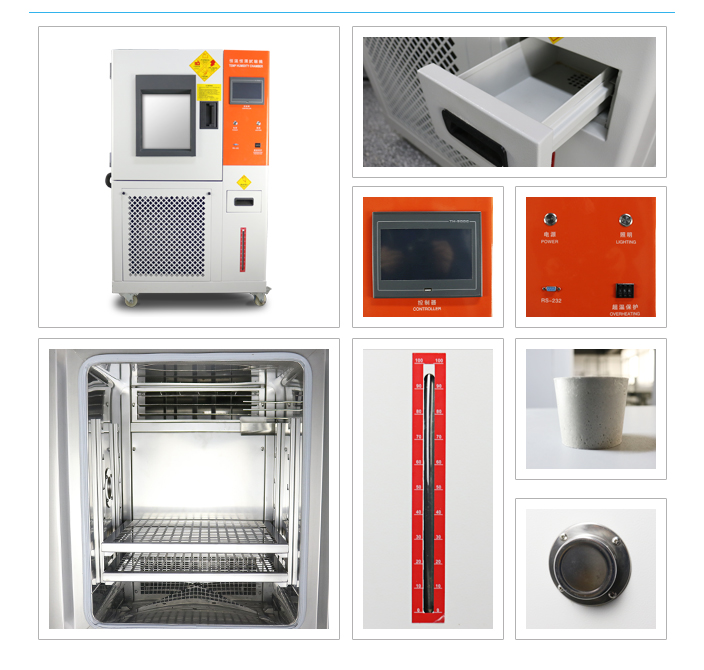

    Feature of temperature and humidity test chamber

    1. Touch screen, South Korean import,900 temperature controller
    2. Control mode: Touchpad
    3. Temperature and Humidity Control Chamber Display: LCD display, Korean TEMi880, programmable.
    4. System capacity:120 groups program X100 sections, required segmentation sections of each group can be arbitrarily divided and each program can freely link another.
    5. Humidity And Temperature Controlled Chamber Cycle setting: each operation procedure can carry out 9999 times or heaps of times cycle and repeated performance, and to the degree, divide further 5 segmentation sections to do part cycle of the extra.

    Test Space Options

    Capacity

    80L

    150L

    225L

    408L

    612L

    1000L

    Inside dimension

    WxHxD(cm)

    40x50x40

    50x60x50

    50x75x60

    60x85x80

    80x90x85

    100X100X100

    Outside dimension

    WxHxD(cm)

    95x136x94

    100X146X104

    100x161X117

    110x171x137

    130x181x137

    152x 210x 127

    Key Specification

    Temperature range

    (optional, can be custom-made)

    -20150

    -40150℃

    -60150℃

    Humidity range

    20%98%, can be set.

    Rate of temperature increasing

    Room temperature150

    About 45 minutes(non-linear

    no-load, about 3.5/minute

    Room temperature-20

    About 45 minutes(non-linear

    no-load, about 1.2/minute)

    Machine precision

    Control accuracy (test precision)

    Temperature

    +/-0.5

    Humidity

    +/-1%RH

    Distribution accuracy (uniformity)

    Temperature

    +/-1.0

    Humidity

    +/-2%RH

    Environment temperature

    5℃-28℃

    Environment relative humidity

    ≤85%RH

    Power voltage

    220V AC(+/-10%), protect ground wire, ground resistance≤4Ω.

    Frequency

    50+/-0.5Hz

    Power switch

    Air-break switch(40A, knife switch or outlet is prohibited to use.)

    Power

    4.5KW

    Humidification water

    Resistivity(≥500MΩ)

    Requirement of ambient air quality

    Do not contain high concentration dust and flammable gas, without strong electromagnetic radiation source nearby.

    Power supply

    AC13W 380V 50/60HZ, voltage change allowed value: ±10% of fixed voltage.

    Max loading capacity

    8KVA

    Max operating current

    30A
