    Face Mask Particulate Filtration Efficiency Tester

    Ask Lasest Price
    Brand Name : GESTER
    Model Number : GT-RA09
    Certification : CE, ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets/month
    Delivery Time : 10-30 days
    • Product Details
    • Company Profile

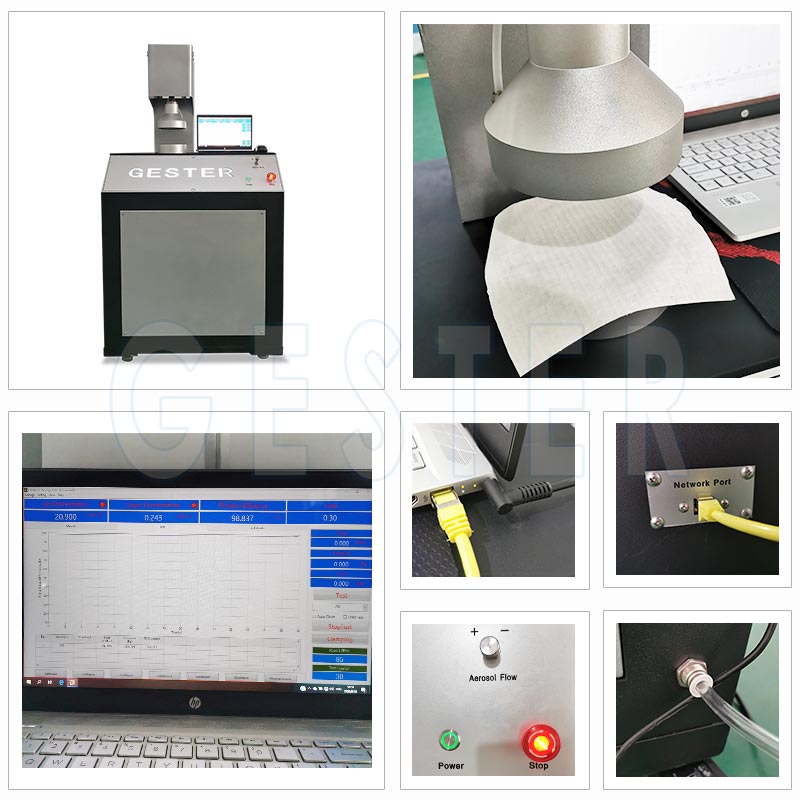

    Face Mask Particulate Filtration Efficiency Tester

    Automatic Particulate Filter Efficiency PFE Tester GT-RA09

    Product Introduction

    Application:

    Particulate filtration efficiency (PFE) tester is suitable for rapid, accurate and stable detection of the filtration efficiency of various medical and daily protective masks, respirators, etc.

    PFE Tester Feature:

    1.Flow detection: The system test flow is mainly provided by dry and clean compressed air from the outside. Internal voltage stabilization and flow stabilization devices to ensure the stability of the detected flow, and the automatic control system is simple, fast and stable.
    2.Test results: equipped with 7-inch touch screen, the test results are displayed directly on the interface, the user can choose to directly or save the data.
    3.Data port: external memory card, export data without worrying about data loss.
    4.Resistance detection: The resistance pressure difference of the filter material will be obtained through the static pressure ring of the upstream and downstream test chambers, adopt high-precision imported brand differential pressure transmitter to ensure the accuracy and stability of differential pressure.
    5.Simple operation: the user only needs to place the filter paper in the fixture and press the button to adjust the test flow, the system will automatically test the resistance and efficiency through the controller (PLC).

    Particulate Filtration Efficiency Tester Option Models


    Model

    GT-RA09A

    GT-RA09B-1

    GT-RA09B-2

    GT-RA09C

    Aerosol

    Salt or Oil

    Salt+Oil

    Salt or Oil + Latex Spheres

    Latex Spheres

    Aerosol Channel

    One

    Two

    Two

    One

    Efficiency detection

    0.1-10μm Photometer

    0.1-10μm Photometer

    0.1-5μm Particle counter

    0.1-5μm Particle counter

    Standards

    EN149, EN143, JIS/T 8151, NIOSH-42 CFR84

    GB 2626, GB/T 32610,

    GB/T 19083

    ASTM F2100 9.3, ASTM F2299 EN149, EN143, JIS/T 8151, NIOSH-42 CFR84

    NBR15052

    GB 2626, GB/T 32610, GB/T 19083

    ASTM F2100 9.3, ASTM F2299

    Control mode

    Laptop computer + English operation software


    Oil aerosol type: DEHS, DOP, Paraffin

    PFE Tester Key Specification

    Model

    GT-RA09

    Test flow range

    15L / min ~ 100L / min, accuracy 2%

    The air flow cross-sectional area

    100cm²

    Resistance test range

    0 ~ 1000Pa, accuracy can reach 0.1Pa

    Filtration efficiency test range

    0 ~ 99.999%, resolution 0.001%

    Test time

    Simultaneous efficiency and resistance test: 70s

    Test range

    0.001 - 300mg/m3

    Power supply

    1phase 220V 50Hz
