    GB/T 21196.2 Martindale Abrasion And Pilling Tester

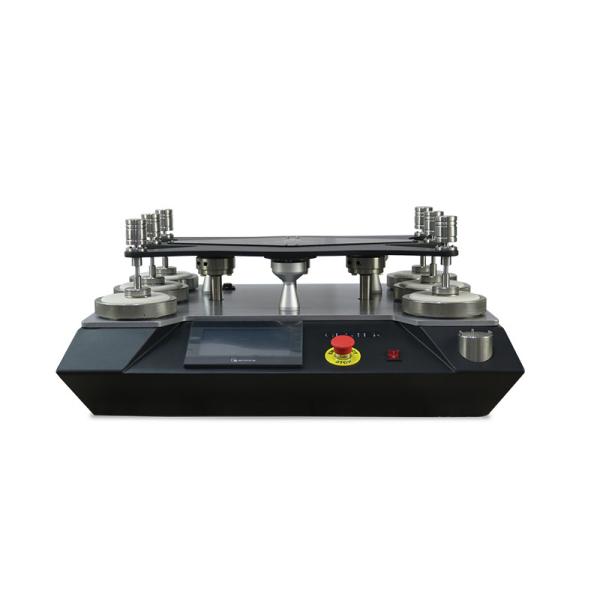

    Martindale Abrasion and Pilling Tester GT-C13

    Product Introduction

    Application of martindale tester:

    The Martindale Abrasion and Pilling Tester is the standard method of determining the wear resistance of textiles or leather and the resistance to pilling. Samples are rubbed against known abradents at low pressures and in continuously changing directions and the amount of abrasion or pilling is compared against standard parameters. Adaptable to test a wide range of applications including textiles, socks, leather, coated upholstery, carpets, wood and shirt collars.

    Four models are available, with 4, 6, 8 and 9 Abrading Tables respectively.


    Standards of martindale tester:

    Abrasion: GB/T 21196.2, GB/T 13775, ISO 12947, ASTM D4966, IWS TM 112, M﹠S P19, Next 18, SN 198529, TWC 112, JIS L1096
    Pilling: GB/T 4802.2, ISO12945-2, ASTM D4970, IWS TM 196, M﹠S P17, Next TM26, SN 198525


    Feature of martindale

    1.Test Standard: Lissajous figure.

    2.Working positions: 4, 6, 8, 9 optional.
    3.Counting Method: 1) count up. 2) count down.
    4.The unique design allows removal of individual sample holders 5.for examination without lifting the top motion plate.
    6.Standard sample holders with 9 and 12kpa weights included.
    7.PLC, 7 inches color touch screen, Chinese and English operation interface.
    8.Weights and key components are made up by 316 stainless steel

    9.which is well-formed and durable in use.

    10. To prevent distortion, the top motion plate was special made up by 316 aluminum alloy.


    Martindale Abrasion Tester Key Specifications

    Model

    GT-C13B-4

    GT-C13B-6

    GT-C13B-8

    GT-C13B-9

    Working positions

    4

    6

    8

    9

    Control mode

    PLC control and touch screen display

    Counter range

    0~999999 times

    Test pressure

    Abrasion test

    A) Specimen holder: (198 ±2)g

    B) Larger loading piece: (597±5)g

    C) The sum mass: (795± 7)g, for workwear, upholstery, bed linen and fabrics for technical use ( nominal pressure of 12kpa)

    A) Specimen holder: (198 ±2)g

    B) Smaller loading piece: (397±5)g

    C) The sum mass: (595± 7)g, for apparel and household textiles, excluding upholstery and bed linen (nominal pressure of 9kpa)

    Pilling test

    A) Stainless steel loading piece: (155 ± 1) g

    B) Specimen holder: (260 ± 1)g

    C) The sum mass: (415± 2)g

    Holder effective diameter

    A) Abrasion Holder : Φ(28.65 ± 0.05)mm

    B) Pilling Holder : Φ(90 ± 0.10)mm

    Rotational speed

    50± 2r/min

    Pressing weight

    Mass : (2.5 ± 0.5) kg

    Diameter: Φ(120 ± 10) mm

    Power supply

    AC220V 50/60Hz

    Dimensions(L x W x H)

    60×55×41cm

    88×61×41cm

    90×62×41cm

    90×62×41cm

    Weight

    75kg

    130kg

    145kg

    150kg

    Standards

    Abrasion: GB/T 21196.2, GB/T 13775, ISO 12947, ASTM D4966,

    IWS TM 112, MS P19, Next 18, SN 198529, TWC 112, JIS L1096, ( ISO17076-2 ball plate method, optional)

    Pilling: GB/T 4802.2, ISO12945-2, ASTM D4970, IWS TM 196, MS P17, Next TM26, SN 198525
