    AC220V 50Hz 20W Textile Testing Machine Elmendorf Tear Tester

    Ask Lasest Price
    Brand Name : GESTER
    Model Number : GT-C10B
    Certification : CE, ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets/month
    Delivery Time : 10-30 days
    • Product Details
    • Company Profile

    AC220V 50Hz 20W Textile Testing Machine Elmendorf Tear Tester

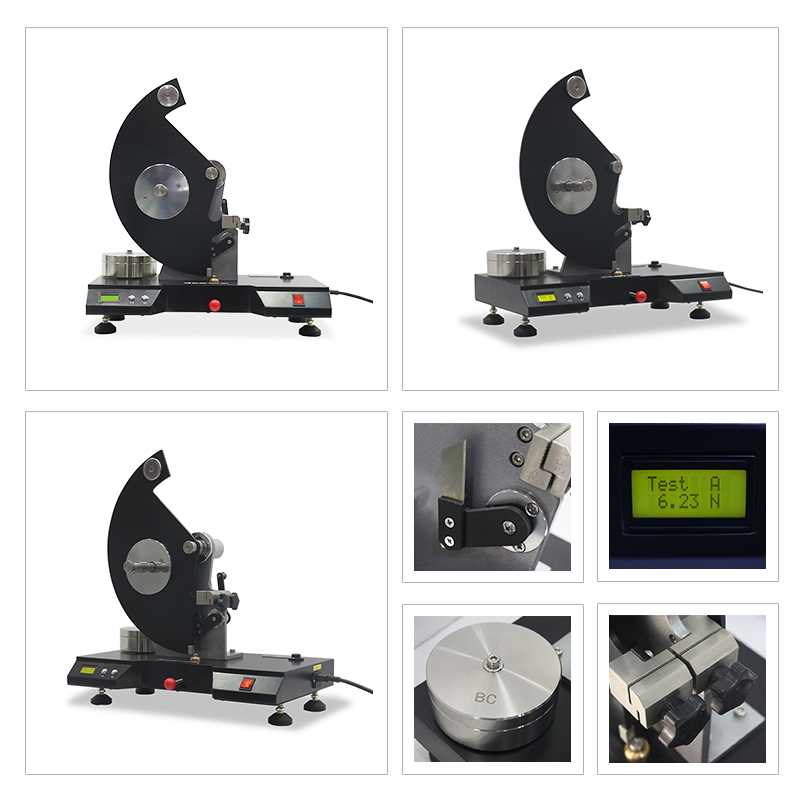

    Falling-Pendulum Type Elmendorf tear tester GT-C10B


    Product Introduction of elmendorf tear tester


    Application:

    This Elmendorf Tearing Tester can be used to test the Determination of tear resistance of textile, non-woven fabrics, paper, paperboard, thin film, ventilation tape, sheet metal etc.


    Standards:

    Test for Textile: GB/T 3917.1, ASTM D 1424, DIN 53862, EN ISO 13937-1, ISO 4674-2, ISO 9290, M&S P29, NEXT 17, NF G07-149

    Test for Paper: GB/T 455, APPITA P 400, ASTM D 689, BS 4468, CSA D9, DIN 53128, EN 21974, ISO 1974, JIS P 8116, PAPTAC D9, SCAN P11, SNV 198482, TAPPI T414, UNI 6444

    Test for Plastic: GB/T 11999, ASTM D 1922, ISO 6383-2, JIS K 7128-2, NF T54 141

    Test for Non-woven fabrics: ASTM D 5734, WSP 100.1



    Feature of tearing tester

    1. This LCD display, simple to operate and easy to understand.

    2. Microprocessor can automatically detect and analyze data. It features precision test, reliable performance and simple operation.

    3. The instrument all can meet the related requirements of GB/T3917.1-2009 .

    4. Apply to the determination of tear strength of various woven fabrics and other materials, such as paper, plastic sheets, film, electrical tape, sheet metal and so on.



    Key Specifications of elmendorf tear tester

    Model

    GT-C10B

    Range of tearing force

    016N (A)

    032N (B)

    064N (C)

    Accuracy

    ≤ ±1%F·S

    Rip Length

    43mm

    Power Supply

    AC220V 50Hz 20W

    Dimensions

    400×210×395mm

    Weight

    30kg

    Standards accessories

    Pendulum B (16N) 1pc

    Pendulum C (32N) 1pc

    Sample Template 1pc

    Power Line 1pc
