    Low Temperature ASTM D1052 ROSS Flexing Tester For Shoe Soles

    Ask Lasest Price
    Brand Name : GESTER
    Model Number : GT-KB05B
    Certification : CE, ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 set/month
    Delivery Time : 10-30 days
    • Product Details
    • Company Profile

    Low Temperature ASTM D1052 ROSS Flexing Tester For Shoe Soles

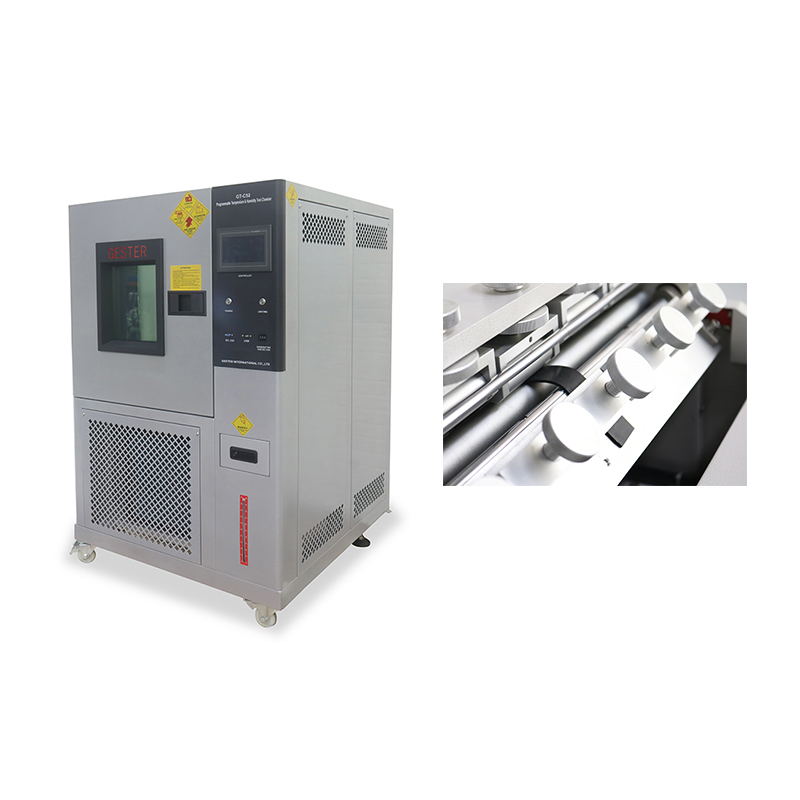

    Low Temperature ROSS Flexing Tester for shoe soles


    Product Introduction

    Application:

    Low Temperature ROSS Flexing Tester is used to determine rectangular bending test of rubber products, shoe soles, PU, PVC, TPR foam and other materials. And inspect its degree of damage, cracking and reduced decline by continuously stretch and bending.

    Standards:
    ASTM D1052, SATRA TM60, BS5131 : 2.1, GB 20265 section 4.2, ISO 5423, ISO4643, HG/T2411

    Feature

    1.Body paint baking processed, easy for maintenance.

    2.Fixture in aluminum material and surface processed with oxidation.

    3.Equip with digital counter, automatically stop after test finished.

    4.The Chamber can meet test requirements with different temperature.


    Key Specifications

    Model

    GT-KB05B

    ROSS Flexing Parameters

    Fixture

    6 sets, can test 12pcs samples

    Bending Angle

    90±2°

    Bending Speed

    0~110 cpm (adjustable)

    Winding Shaft Radius

    5± 0.3mm

    Specimen Dimension

    152 * 25mm

    Counter

    LCD, 0~99,999,999

    Control System

    Touch Screen Programmable Microprocessor Control

    Temperature Range

    -40~100℃

    Temperature Accuracy

    +/-0.5

    Inside Chamber Capacity

    150L

    Chamber Material

    SUS # 304 Stainless Steel and Painted

    Power Supply

    1∮AC220V 50/60HZ

    Dimension(W×D×H)

    110X170X180 cm

    Weight (Approx)

    400 kg
