    ISO 5423 Shoe Testing Machine Maeser Water Penetration Tester For Leather

    Ask Lasest Price
    Brand Name : GESTER
    Model Number : GT-KC05
    Certification : CE, ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets/month
    Delivery Time : 10-30days
    • Product Details
    • Company Profile

    ISO 5423 Shoe Testing Machine Maeser Water Penetration Tester For Leather

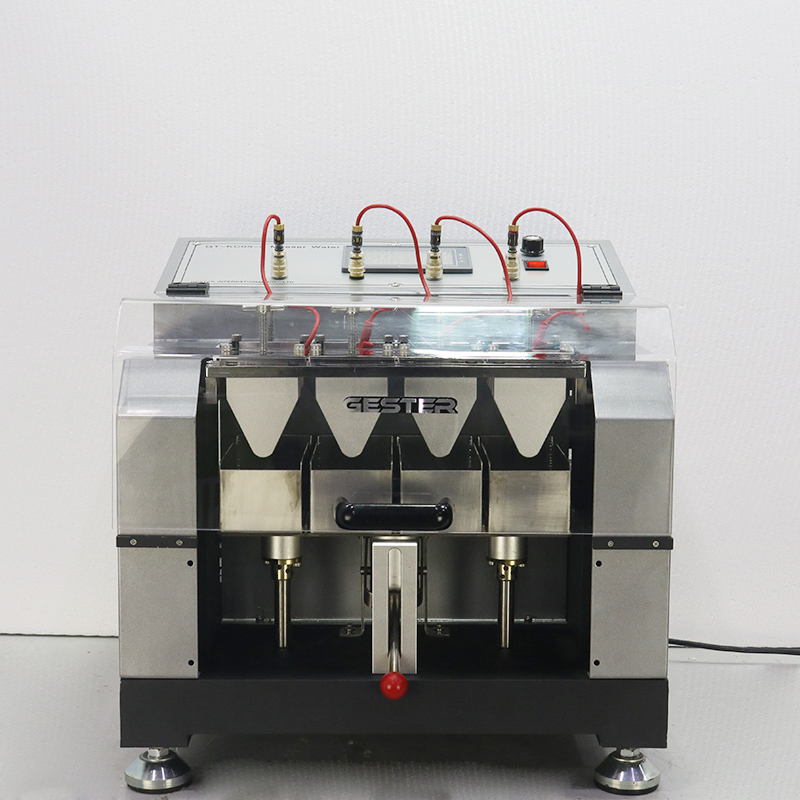

    Leather Maeser Water Penetration Tester

    Product Introduction

    Application:

    Maeser Water Penetration Tester is used to determine the resistance of leather, artical leather, fabric and so on material to water penetration on flexing. The method is mainly applicable to footwear upper outer materials but can be used with any flexible sheet material.


    Standards:

    ISO 5423 section 5.2, EN ISO 20344 Section 6.5.2, AS/NZS 2210.2 Section 6.5.2, GB/T 20991 Section 6.5.2, GB20265 section 4.1, EN ISO 22288, SATRA TM25


    Principle

    A square test specimen is folded and secured in two V-shaped clamps which have closed ends so as to form a trough. The trough is then immersed in water and the clamps oscillate at a constant speed so that the specimen is repeatedly flexed. The test is stopped at the first sign of water penetration through the test specimen.


    Key Specifications

    Model

    GT-KC05-1

    GT-KC05-2

    GT-KC05-3

    Position

    4

    Control method

    Touch-screen control, 0~999,999

    Clamps

    V-shaped

    Clamps tip radius

    4mm

    7.5±0.5mm

    Moving fixture flexing displacement

    25.4±1.3 mm

    Non required

    Moving fixture flexing angle

    Non required

    30 ± 1 °

    32 ± 1 °

    Test speed

    90±5 r/min

    Shutdown method

    Electrode induction

    Sample size

    101.6 x 101.6 mm

    114 x 114 mm

    Power supply

    1∮AC 220V 50/60HZ

    Dimensions( L x W x H )

    49x45 x45cm

    Weight

    55 kg

    Standards

    ASTM D2099

    SATRA TM34 Type 1

    SATR TM34 Type 2, ISO 5403-2

    Standard Accessories

    Stainless steel ball 550g

    Electrode induction line 4pcs

    Power line 1pcs

    Option Accessories

    GT-C48 Pneumatic Sample Press (Cutter: 101.6x101.6 mm and114 x114 mm)

    Electronic balance (300g / 0.01g)
