Brand Name : | GESTER |
Model Number : | GT-KC21-1 |
Certification : | CE, ISO |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 200 sets/month |
Delivery Time : | 10-30days |

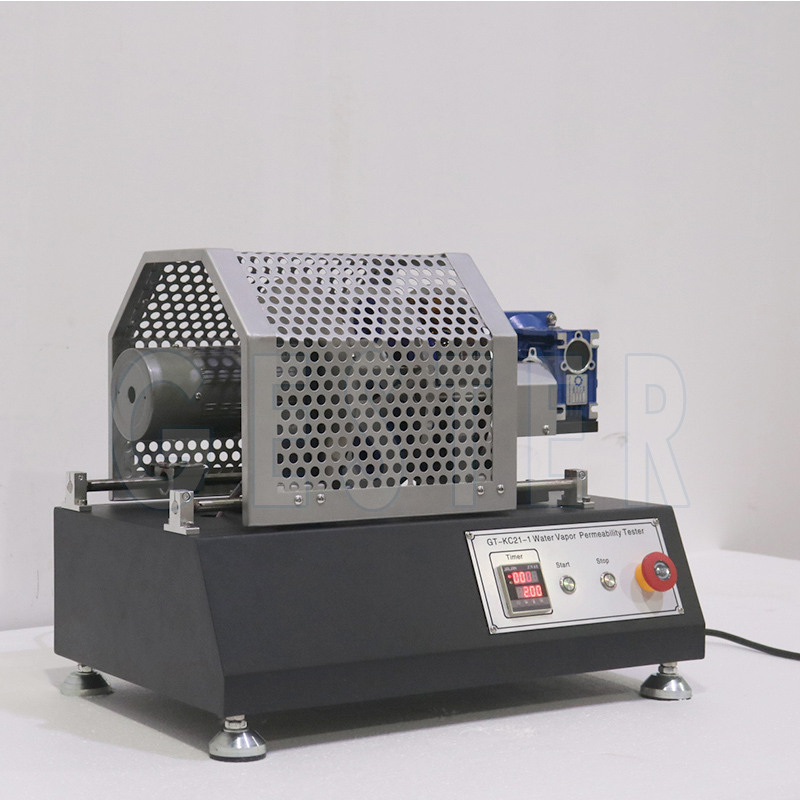

Water Vapor Permeability Tester is used to determine the water vapor permeability for vamp and upper shoe materials. Using in the conditioning room under the standard stipulated temperature (23 ± 2)℃ and humidity (50 ± 5)% RH.
Standards:
EN ISO 20344 Section 6.6.2, AS/NZS 2210.2 Section 6.6.2
GB/T 20991 Section 6.6.2 , EN 344-1 Section 5.13, BS 3144,
DIN 5333. SATRA TM172
Model | GT-KC21-1 |
Testing bottle number | 6pcs |
Bottle mouth diameter | 30mm |
Bottles holder speed | 75 ±5cpm |
Fan blades | 90 x 75 mm, 3 flat blades in planes inclined at 120° to each other |
Fan rotate speed | (1400 ± 100) r/min |
Specimen size | ¢34mm |
Power supply | 1∮AC220V 50/60HZ |
Dimensions | 56X37X38cm |
Weight | 50kg |
Shoes Material Water Vapor Permeability Tester Accessories (A):
Standard Accessories
| 6pcs | Testing Bottles |
1pc | Power Line |
Water Vapor Permeability Tester Accessories (B):
Option Accessories
| Optional | |
Optional | GT-KD20 Hydraulic Rocker Pressure Tester (cutter: 70 ± 5 x 45 ± 5 mm,and ¢34mm) | |
Optional |
![]() |
