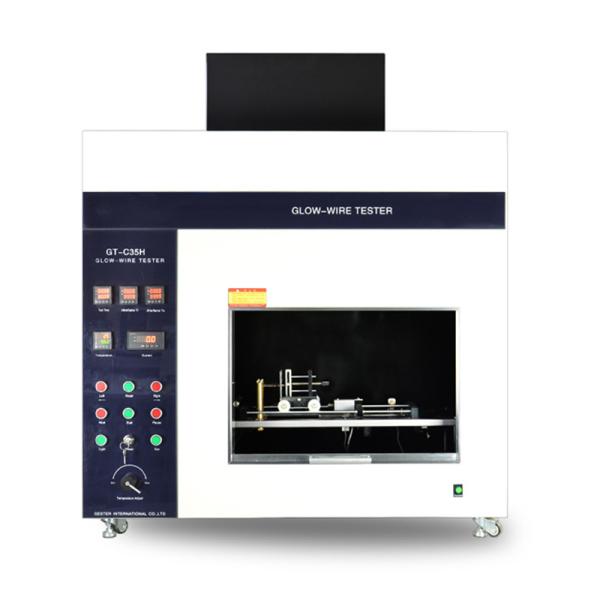

    LCD Display 150-1000 Degree IEC60695 Glow Wire Test Apparatus

    LCD Display IEC60695 Glow Wire Tester

    Product Introduction of glow wire test apparatus


    Application

    Glow wire tester is the latest release of the flaming test equipment, with imports of touch-screen controller and instrument.

    New test circuit, stable performance, reliable, simple and easy to operate. wide range of parameter adjustment. The Glow Wire Tester is apply to the latest test standards IEC60695,GB5169, etc.


    Glow wire test Standards:


    IEC60695 ; GB5169



    1. Glow Wire Tester Digital indicator control system.

    2. Full import control components.

    3. Special high-quality stainless steel clamps.

    4. Wireless remote control timing device.

    5. Advanced temperature control ang measuremtnt system


    Key Specifications of glow wire test apparatus

    Outside dimension

    1120×600×1020mm ( L×W×H)

    Glow wire

    Φ4mm Ni/Cr(80/20)

    Thermocouple

    Φ1mm K type

    Glow temperature

    150degree~1000 degree (adjustable)

    Sample pressure

    1.0N±0.1N

    Sample move speed

    10mm /s~25mm /s(adjustable)

    Apply temperature time

    0.01s99.99s(adjustable)

    Start burning time

    0.01s~59m59.99s

    Continue burning time

    0.01s~59m59.99s

    Power supply

    Single-phase AC 220 V 50/60Hz
