    Finger diameter 5.6mm ISO 8124-1 Standard Test Finger Probe for toys

    Ask Lasest Price
    Brand Name : GESTER
    Model Number : GT-MB06
    Certification : CE, ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 set/month
    Delivery Time : 10-30 days
    • Product Details
    • Company Profile

    Finger diameter 5.6mm ISO 8124-1 Standard Test Finger Probe for toys

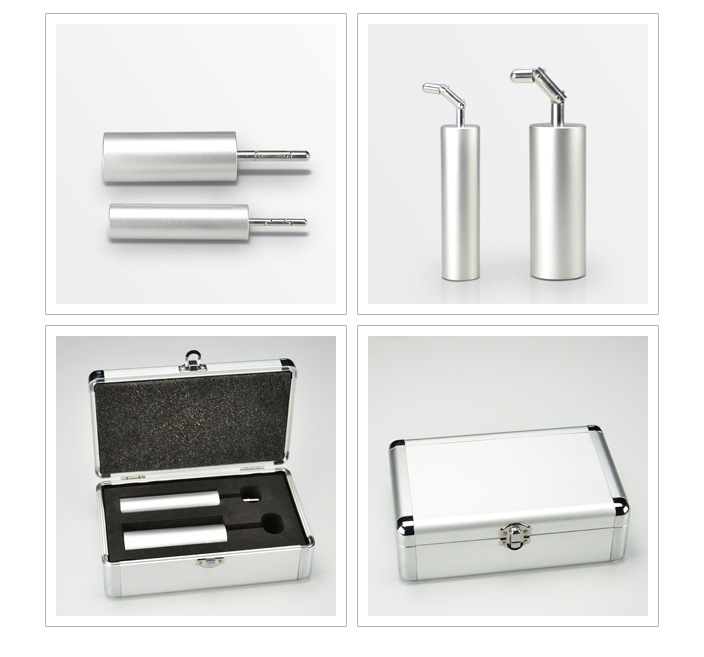

    ISO 8124-1 Standard Test Finger Probe & Accessibility Probe


    Product Introduction

    Application:

    Standard Test Finger Probe & Accessibility Probe is used to determine whether the hazardous parts of toys can be touched. If it is accessible, then conduct the related test according to standards so as to reduce the damage hazards for children.


    This tools include 2 models: Probe A and Probe B:

    1. An accessible part for a toy or article intended for children under 3 years of age is one that can be contacted by any portion forward of the collar of the accessibility probe designated as probe A.

    2. An accessible part for a toy or article intended for children over 3 years up to 8 years of age is one that can be contacted by any portion forward of the collar of the accessibility probe designate as probe B.

    3. An accessible part for a toy or article intended for children of ages spanning both age groups is one that can be contacted by any portion forward of the collar of either probe A or B.


    Standards:


    EN 71-1; ASTM F963; 16CFR 1500; ISO 8124-1; GB 6675-2



    Key Specifications
    ModelGT-MB06 Probe AGT-MB06 Probe B
    Applicable ageUnder 36 monthsAbove 36 months
    Finger diameter5.6mm8.6mm
    Finger-tip radius of curvature2.8mm4.3mm
    Finger total length44.0mm57.9mm
    Finger single section length14.7mm19.3mm
    Arm diameter25.9mm38.4mm
    Arm length101.6mm
    Extension rod diameter25.4mm38.1mm
    Extension rod diameter464.3mm451.6mm
    MaterialArm: Aluminum alloy
    Finger: stainless steel
    Dimensions (LxWxH)25.9 x 25.9 x 146 mm38.4 x 38.4 x 160 mm
    Weight300g350g

    Accessory

    Optional accessoriesOptionalExtension rod A
    OptionalExtension rod B
