    3KW PLC HIPS Thermoplastic Vacuum Forming Machine

    Ask Lasest Price
    Brand Name : GESTER
    Model Number : HEY05
    Certification : CE, ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 set/month
    Delivery Time : 10-30 days
    • Product Details
    • Company Profile

    3KW PLC HIPS Thermoplastic Vacuum Forming Machine

    3KW PLC HIPS Thermoplastic Vacuum Forming Machine


    Application

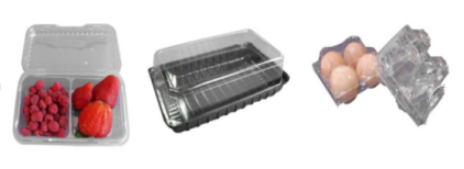

    Mainly for the production of variety plastic containers ( egg tray, fruit container, package containers, etc) with thermoplastic sheets, such as APET, PETG, PS, PSPS, PVC,etc.



    Features

    1. Utilizes PLC control system, servo drives upper and lower mould plates, and servo feeding, which would be

    more stable and precision.

    2. Human-computer interface with high definition contact-screen, which can monitor the operation situation

    of all parameter setting.

    3. Applied self-diagnosis function, which can real-time display breakdown information, easy to operate and

    maintenance.

    4. Several products’ parameter can be stored in device, which would be quickly test and adjustment of

    machine when producing different products.


    Product Parameter

    ModelHEY05AHEY05B
    ControlAir CylinderServo
    Forming Area(L*W)1350*760 mm
    Option Customized Forming Area(L*W)1220*760/900mm, 1350*900mm, 1500*760/900mm
    Whole Machine PowerMax. 50kw
    Heating PowerMax. 40kw
    Average Power ConsumptionAbout 25kw
    Heating MethodInfrared-radiation Heating
    Work Frequency4-24 times/min
    Forming HeightMax. 240mm (Male Mould), Max. 200(Female Mould)
    Sheet Thickness0.1-2.5 mm
    Sheet Width450-800mm
    Air Compressor0.6-0.7 Mpa
    Air Supply Quantity1.5-2 m3/min
    Vacuum Flow Rate100 m3/hour
    Power3kw
    Ultimate Vacuum5mbar
    Water Supply350kg/h
    Power SupplyThree Phase Four Lines 380V 50/60HZ
    Machine Dimensions8900*1800*2600mm
    Whole Machine WeightAround 4500 kg

    Product Picture

    3KW PLC HIPS Thermoplastic Vacuum Forming Machine
