    650N Dry Microbial Penetration Resistance Tester

    Ask Lasest Price
    Brand Name : GESTER
    Model Number : GT-RA14
    Certification : CE, ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets/month
    Delivery Time : 10-30 days
    • Product Details
    • Company Profile

    650N Dry Microbial Penetration Resistance Tester

    Dry Microbial Penetration Resistance Tester GT-RA14

    Application

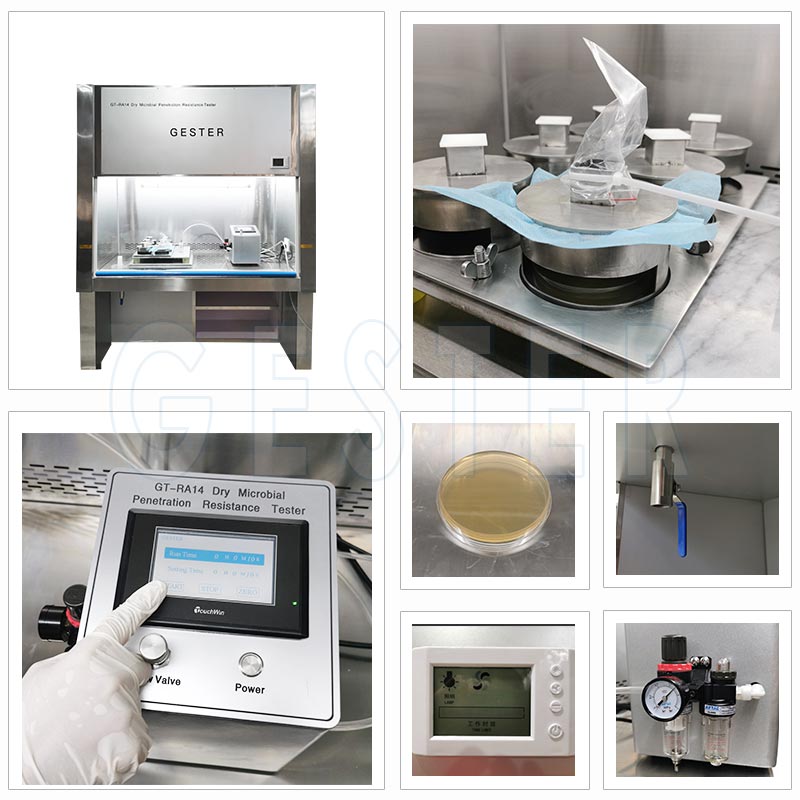

    The Experimental system of microbial penetration in dry state is composed of gas source generation system, detection main body, control system and so on. It is used to carry out the method of dry microbe penetration resistance test on the surgical drapes, gowns and clean air suits.

    Principle

    1. The test is carried out on test pieces each fixed in a container. In every container except one a portion of talc contaminated with Bacillus subtilis is poured on the test piece. One container is left uncontaminated as a control. A sedimentation plate is inserted at the base of each container at a short distance below the test piece.
    2. The apparatus supporting the containers is then vibrated by a pneumatic ball vibrator. The talc that penetrates is captured on the sedimentation plate. The sedimentation plates are removed and incubated.
    3. The numbers of colonies produced are counted.

    Key Specification

    Model

    GT-RA14

    Mode of vibration

    Pneumatic ball vibrator

    Vibration frequency

    20800 times / minute

    Vibration force

    650N

    Work table size

    40cm×40cm×10mm

    Worktable media

    Marble slab

    Experimental container

    Stainless steel experimental container

    Working positions

    6

    Power Supply

    1∮ AC 220V 50Hz

    Standards

    YY/T0506.2 Surgical drapes, gowns and clean air suits for patients, clinical staff and equipment - Part 2: Performance requirements and test methods;

    YY/T0506.5 Surgical drapes, gowns and clean air suits for patients, clinical staff and equipment - Part 5: Test methods for resistance to dry microbial penetration;

    ISO 22612 Clothing for protection against infectious agents - Test method for resistance to dry microbial penetration.
