    Single Column ASTM Universal Testing Machine For Tensile Strength

    Ask Lasest Price
    Brand Name : GESTER
    Model Number : GT-UA03
    Certification : CE, ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 set/month
    Delivery Time : 10-30 days
    • Product Details
    • Company Profile

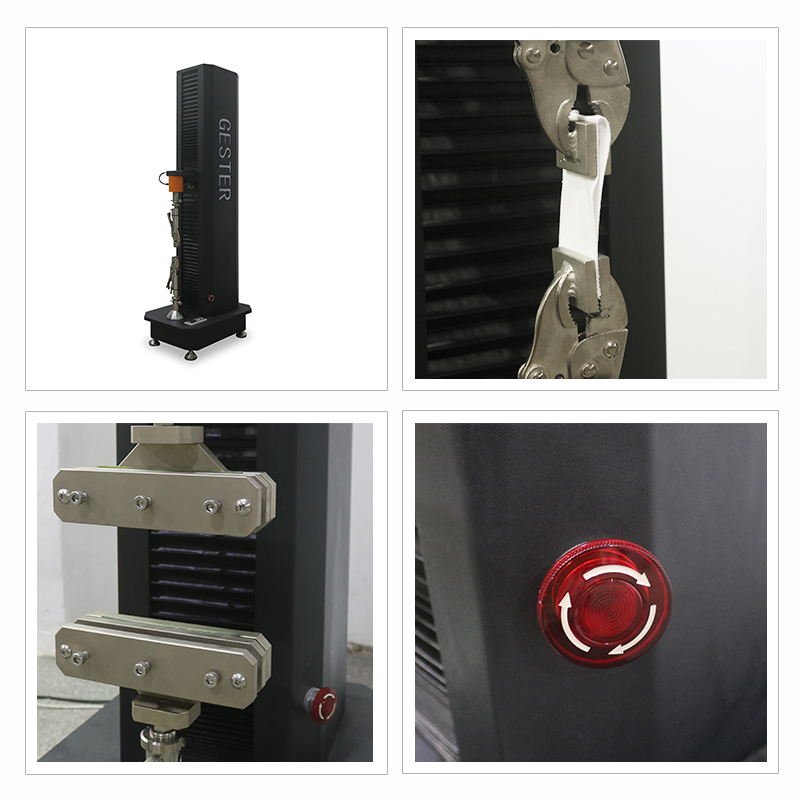

    Single Column ASTM Universal Testing Machine For Tensile Strength

    Single Column ASTM universal tensile testing machine manufacturers

    Product Introduction

    Application:

    Tensile Test Machine is applied to the test of mechanical property like tension, compression, bending, shear , tear, peel of materials such as rubber, plastic, aluminum tube, composite materials, waterproof materials, prevention material, yarn, fiber, wire and cable, paper, spring, wood, packaging materials, adhesive tape, etc. And it can also fulfill the multi-closed loop test like constant stress, constant strain, creep, slack, etc. When it installs with special device, it can do other test items like reversion, cupping.

    Feature:

    1.The power system: servo motor and servo drivers and worm gear and rod reducer and ball screw.
    2.Control system: adopting Pulse Command control method, it will be more accuracy and easy to control.
    3.The speed control range: 0.001-1000 - mm/min.
    4.The intermediate plate adjustment is both fast coarse and slow fine-tuning.
    5.It will return to original site and save automatically testing.
    6.Data transmission mode: RS232 transmission.
    7.Display mode: computer screen display.
    8.This instrument can realize constant speed, positioning, constant power, constant stroke control mode and multi-level control mode which can meet the test requirements of the ordinary.
    9.Al plate walking space: 1000 mm (excluding fixture, according to the customer requirements ).
    10.Using the LINE DRIVE encoder strong anti-interference ability displacement resolution 0.001 mm.
    11.Safety device: overload emergency stop device, up and down stroke limit device, leakage automatic blackout system, automatic break point stop function.

    Standards:

    SATRA TM5, TM53, TM52, TM51, TM108, TM113, TM117, TM118, TM120, TM123, TM149, TM162, TM401, TM 411,TM 410, ASTM D 751/2209 /412/624 FIA 1206, BS5131- 3.7, 5.11, 5.13 , BS 5131-2.6

    ISO22650, ISO 19958, ISO 3377-1, ISO 3377-2, ISO 11644, ISO 20866, ISO20867, ISO19957, ISO20874, ISO20344-5.2.4, ISO 20345-5.3.1.2, ISO17698, ISO20875, ISO22777, ISO22776, ISO22654, ISO20863, ISO20876, ISO17695, ISO17697, ISO34-1 ,ISO36, ISO37, ISO 17708,

    ISO 17696, ISO17706, AS/NZS 2210.2-5.2.4, DIN 53331, GB/T3903.8, GB/T3903.9, GB/T3903.14, GB/T3903.20, GB/T3903.21, GB/T3903.22, GB/T 3903.23, GB/T 3903.24, GB/T 3903.25,

    GB/T 3903.26, GB/T 3903.29, GB/T3903.32, GB/T 3903.39, GB/T 3903.40, GB/T 3903.43, GB/T 4689.20, GB/T20991-5.2.4, GB 21148-5.3.1.2, GB/T 17928, GB/T529, GB/T528, GB/T532, GB/T21396

    QB/T11413 ,QB/T 2711 ,QB/T2675, QB/T2883, QB/T4118,QB/T4198, HG/T 2726, HG/T 2877, HG/T4805

    Key Specifications

    Model

    GT-UA03

    Capacity

    50N, 100N, 200N, 500N, 1KN, 2KN, 2.5KN, 5KN

    Display

    Computer display

    Force Resolution

    1/100,000

    Force Accuracy

    ≤+/-0.5%

    Stroke Range

    1000mm

    Stroke Resolution

    0.001 mm

    Test Speed

    0.001-1000mm/min can set on display, with up & down fast adjustment button of grips

    Force Unit Switch

    Kgf, N, Ibf, g, ton, Mpa

    Stop Mode

    Overload stop, emergency stop button. specimen damage automatic stop

    Machine Drive

    Servo motor drive, synchronous wheel and precision ball screw drive

    Power

    120W

    Power Supply

    AC 220V 50-60HZ 10A

    Dimensions

    Approx 50x40x145 cm

    Weight

    60kg

    Accessories:

    Standards accessories

    1set

    Manual grips

    1pc

    Load cell

    1pc

    English operation software

    1pc

    Cable connect with PC

    Option accessories

    Optional

    Desk top computer

    Optional

    Other grips
