    Stroke Length 25mm ASTM D3885 Universal Wear Tester For Fabric

    Ask Lasest Price
    Brand Name : GESTER
    Model Number : GT-C15
    Certification : CE, ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 set/month
    Delivery Time : 10-30 days
    • Product Details
    • Company Profile

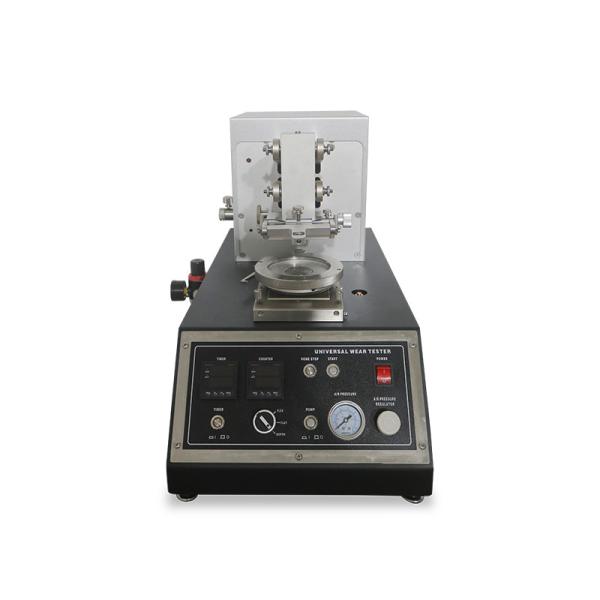

    Stroke Length 25mm ASTM D3885 Universal Wear Tester For Fabric

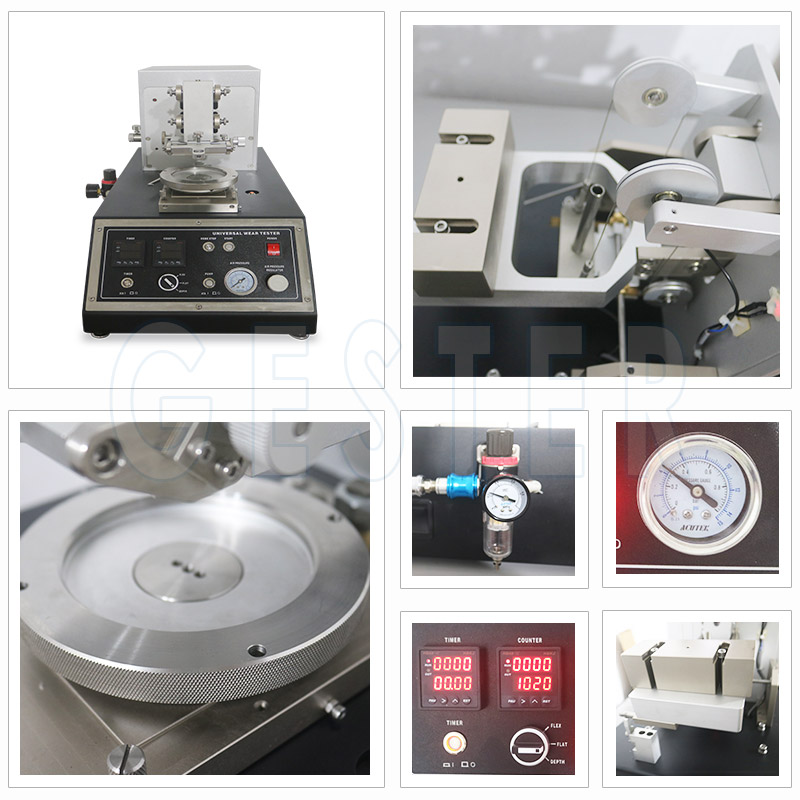

    Universal Wear Tester Stoll Quartermaster GT-C15


    Product Introduction

    Application:

    Universal Wear Tester (UWT) is used to determines the wear and abrasion resistance of fabric used in clothing, footwear and industrials. Supplied with surface abrasion head (inflated diaphragm method, flex abrasion head, depth abrasion test device, flat abrasion (frosting) and pilling test device as well as necessary weights and initial supply of abrasive. Fitted with built-in timer and mechanical cycle counter.


    Feature

    1. This quartermaster universal wear tester equipped with accurate loop counter and timer. Digital counter can record the cycle index when the sample ruptured. And testers can preset the counter to stop before sample rupturing. Count down model can also be used in count the cycle index.
    2. To ensure accuracy of the rubber membrane when doing the surface abrasion test, this machine equipped with accurate pneumatic pressure control system.
    3. Stoll Quartermaster Universal Wear Tester: test can be done automatically which can ensure not only the accuracy of repeat test result but also save operator’s time.


    Key Specifications

    ModelGT-C15-1GT-C15-2
    Speed115±10 double stokes/ min
    Stroke Length25mm
    Counter DisplayLCD
    Power SupplyAC 220V 50/60HZ
    Dimensions480 x 360 x 715mm ( L x W x H )
    Weight50kg
    Standards

    ASTM D3885, D3886


    ASTM D3514, D3885, D3886

    AATCC 119, 120

    Standard Accessories

    Tension weights 5pcs

    Press weights 5pcs

    Micrometer calipers

    Flex Abrasion Testing fixture 1 set

    Flex Abrasion Blade Device 1set

    Surface Abrasion Testing fixture 1 set

    Power Line 1pc

    Tension weights 5pcs

    Press weights 5pcs

    Micrometer calipers

    Flex Abrasion Testing fixture 1 set

    Flex Abrasion Blade Device 1set

    Surface Abrasion Testing fixture 1 set

    Edge & Fold Abrasion Test

    1set

    Flat abrasion (frosting) and pilling test fixture 1set

    Power Line 1pc

    Option Accessories

    Rubber membrane

    ASTMD3514 Photograph

    ASTM D3514 Elastomeric Base Pad and Elastomeric Friction Pad
