ASTM D5132 Horizontal Flame Chamber for Textile

    Buy cheap ASTM D5132 Horizontal Flame Chamber for Textile from wholesalers

    Buy cheap ASTM D5132 Horizontal Flame Chamber for Textile from wholesalers
    • Buy cheap ASTM D5132 Horizontal Flame Chamber for Textile from wholesalers

    ASTM D5132 Horizontal Flame Chamber for Textile

    Ask Lasest Price
    Brand Name : GESTER
    Model Number : GT-C34B
    Certification : CE, ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 set/month
    Delivery Time : 10-30 days
    • Product Details
    • Company Profile

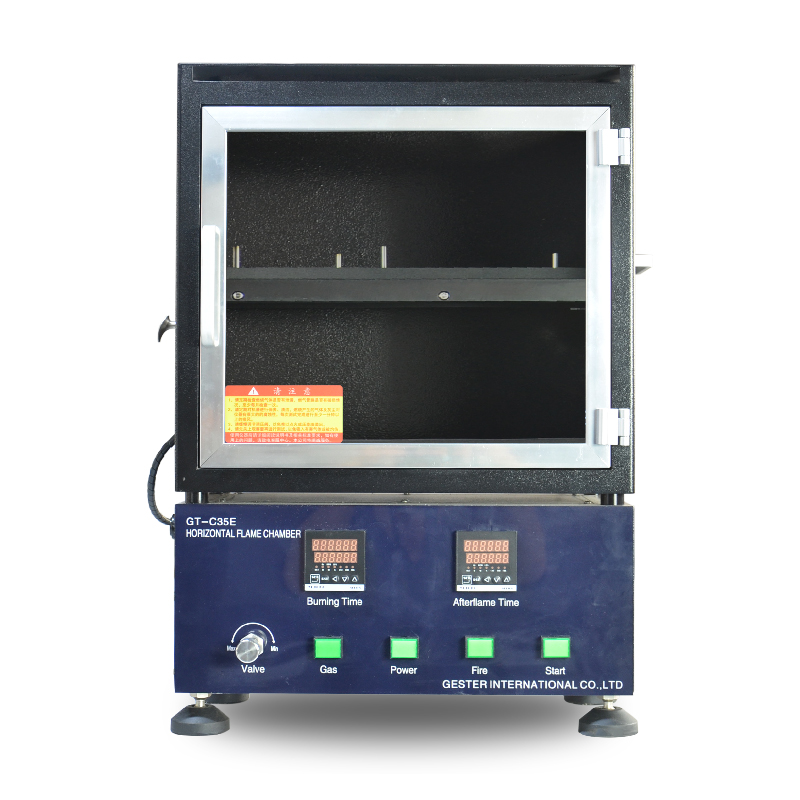

    ASTM D5132 Horizontal Flame Chamber for Textile

    ASTM D5132 Horizontal Flame Chamber for Textile


    Product Introduction

    Application:

    Horizontal Flame Chamber; Mainly used for determining the horizontal burning rate of materials used in the occupant compartment of road vehicles (for example, passenger cars, lorries/trucks, estate cars, coaches), and of tractors and machinery for agriculture and forestry, after exposure to a small flame.

    Standards:
    ASTM D5132, ISO 3795, FMVSS 302, JIS D1201, FZ/T 01028, GB/T 8410, GB/T20953,

    SAE J369, GMW3232

    Feature

    1. Shell 2mm cold plate inside and outside powder stoving varnish.
    2. Dedicated high quality aluminum fixture for anodizing.
    3. Wireless remote controller timing device.
    4. Standard burning appliances, electric spark firing automatically.
    5. Tempered glass window.
    Key Specifications

    Time range0-999.9s
    Time resolution0.01s
    Ignition time15s
    Specimen fixtureU shape, inner size: 330×50mm
    Size of specimen356 x 100mm,Thickness less than 13mm
    Burner angleVertical
    Inner diameter of burner head¢9.5mm
    Ignition height (burner top to specimen )19mm
    Flame height38mm+/-2
    Power supplyAC 220V 50/60HZ
    Dimensions395 x 250 x 570 mm (L x W x H)
    Weight30kg

    Quality ASTM D5132 Horizontal Flame Chamber for Textile for sale
