    PLC Touch Screen Salt Spray Corrosion Test Chamber

    Ask Lasest Price
    Brand Name : GESTER
    Model Number : GT-F50B
    Certification : CE, ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 set/month
    Delivery Time : 10-30 days
    • Product Details
    • Company Profile

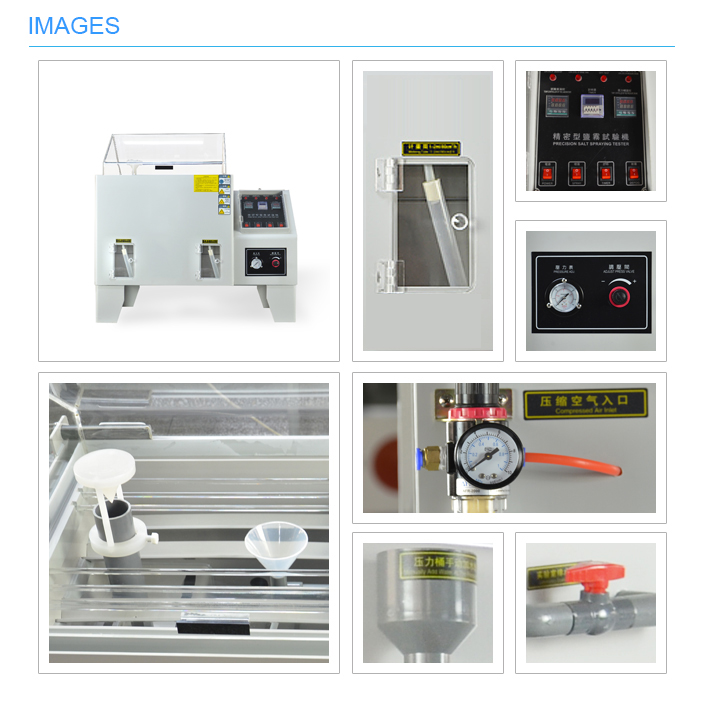

    PLC Touch Screen Salt Spray Corrosion Test Chamber

    PLC Touch Screen Salt Spray Corrosion Test Chamber

    Product Introduction

    Application:

    Salt Spray Corrosion Test Chamber is also called Salt spray tester. The salt spray corrosion test of Salt Spray Tester aims at determining the product corrosion resistance after various kinds of materials surface suffering electroplating, anodizing, painting, rust-proof oil corrosion resistance treatment.The machine is suitable for neutral salt spray test (NSS) and acidic corrosion experiment (AASS, CASS).


    Standards:

    CNS3627,3885,4159,7669,8886,JIS D-0201,H-8502,H-8610,K-5400,Z-2371,ISO3768,3769,3770,ASTM B-117,B-268,GB-T2423SS DIN 50021



    Salt Spray Chamber Specifications

    ModelGT-F50B-1GT-F50B-2GT-F50B-3
    Inside chamber dimension60x45x40cm90x60x50120x100x50
    Outside chamber dimension107x60x118cm141x88x128cm190x130x140
    Test chamber volume108L270L480L
    Brine tank15L25L40L
    Temperature of test chamberBrine test method(NSS ACSS)35℃±1℃
    Corrosion resistance test method (CASS)50℃±1℃
    Temperature of pressure barrelBrine test method(NSS ACSS)47℃±1℃
    Corrosion resistance test method (CASS)63℃±1℃
    Brine temperature35℃±1℃ 50℃±1℃
    PowerAC220V 50Hz
    Brine concentration5% sodium chloride solution concentration or add copper chloride 0.26 grams per liter in the 5% sodium chloride solution concentration. (CuCl2 2H2O)
    Compressed Air Pressure1.00±0.01kgf/cm2
    Spray volume1.0~2.0ml/80cm2/h(gather at least 16 hours, take its average)
    Relative temperature of test chamberAbove 85%
    PH-value6.5~7.2 3.0~3.2
    Spray methodcontinuous spray or intermittent spray
    Power supplyAC220V1Φ10AAC220V1Φ15AAC220V1Φ20A
    Temperature rangeLaboratory temperature35℃- 50℃( can be arbitrarily set)
    Pressure barrel temperature47℃- 63℃( can be arbitrarily set)
    Speed of temperature risingLaboratoryRoom temperature →35℃ about 35 minutes
    Pressure barrelRoom temperature →47℃ about 15 minutes
    Temperature accuracy±1℃

    Standards

    CNS3627,3885,4159,7669,8886,

    JIS D-0201,H-8502,H-8610,K-5400,Z-2371,

    ISO 3768,3769,3770,ASTM B-117,B-268,GB-T2423

    SS DIN 50021
