    Disposable PLA Plastic Cup And Bowl Thermoforming Machine

    Hight Speed PLA Disposable Biodegradable Plastic Cup And Bowl Making Machine


    Cup Making Machine Application

    Mainly for the production of variety plastic containers ( jelly cups, drink cups, package containers, etc) with thermoplastic sheets, such as PP, PET, PE, PS, HIPS, PLA,etc.


    Cup Making Forming Station
    1. Standard square tube frame with 100*100, mould is casted steel and upper mould is fixed by nut.
    2. Opening and closing mould driven by eccentric gear connecting rod.Driving power by 15KW (Japan Yaskawa) servo motor, American KALK Reducer,main axis use HRB bearings.
    3. Plastic Cup Thermoforming Machine Main pneumatic component use SMC(Japan) magnetic.
    4. Sheet feeding device with planetary gear reducer motor, 4.4KW Siemens servo controller.
    5. Stretching device uses 11KW Siemens servo.
    6. Lubrication device is fully automatic.
    7. Caterpillars adopt fully enclosed structure, with cooling device and can manually adjust sheet width.
    8. Heating system uses China ceramic far-infrared heaters, stainless steel upper and down heating furnace, upper heater with 12 pcs heating pads vertically and 8 pcs heating pads horizontally , down heater with 11 pcs heating pads vertically and 8 pcs heating pads horizontally.(specification of heating pad is 85mm*245mm);Electric furnace push-out system uses 0.55KW worm gear reducer and ball screw, which is more stable and also protect the heater pads.
    9. Cup Thermoforming Machine Air filtration uses triplet, blowing cup can adjust airflow.
    10. Folding mould is consist of fixed upper plate,flexible mid plate and 4 pillars with surface hard chrome plating 45#.
    11. Eccentric is the construction of connecting rod fold mould, with running range ≤ 240mm.
    12. Electric heating furnace could be moved horizontally and vertically freely by guide-rail from Hiwin Taiwan.
    13. Toping cups is controlled by AirTAC (Taiwan) cylinder.


    Waste Edge Winding Device
    On-line winding
    Reducer with 0.75KW motor (1 pc)


    Main Technical Parameter

    (Model)HEY12AHEY12B
    Forming Area750x420 mm850x560 mm
    Sheet width<750 mm<850 mm
    Max.forming depth<220 mm<180 mm
    Heating rated power140kw150kw
    Dimension5400x2000x2800mm5500x2000x2800mm
    Machine total weight8T9T
    Applicable raw materialPP,PS,PET,HIPS,PE,PLA
    Sheet thickness0.2-3.0 mm
    Work frequency<35
    Motor power15kw
    Power supply380V/50HZ
    Pressure supply0.6-0.8
    Max.air consumption3.8
    Water consumption20
    Control systemSiemens

    Electric Control

    Human-computer InterfaceSiemens
    PLCSiemens
    Servo Stretching MotorSiemens 11KW servo driver+servo motor
    Servo Folding MotorSiemens 15KW servo driver+servo motor
    Main ReducerAmerica FALK
    Feeding Sheet MotorSiemens 4.4KW servo driver+servo motor
    Temperature ControllerJapan Fuji

    Supply Sheet Rack

    Feeding Reducer with MotorWorm Gear Reducer (Supror)
    Pneumatic PressureAirTAC Cylinder SC63×25=2pcs
    Pneumatic Feeding SheetAirTAC Cylinder SC100×150=2pcs

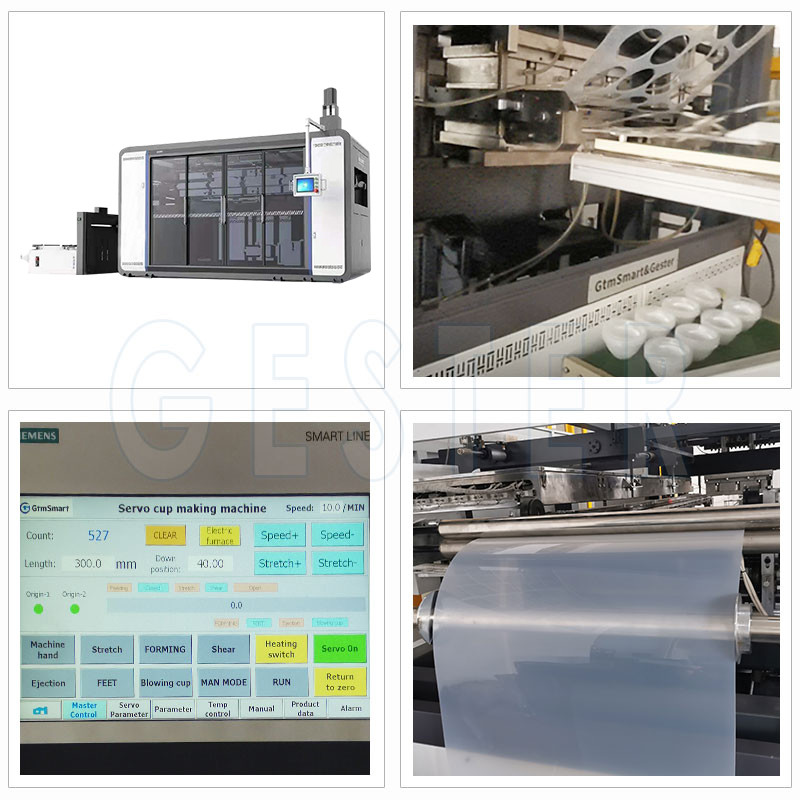

    Product Image

    Disposable PLA Plastic Cup And Bowl Thermoforming Machine
