    CFR1615 CFR1616 ASTM D6413 Vertical Flammability Testing Chamber For Fabric

    Ask Lasest Price
    Brand Name : GESTER
    Model Number : GT-C35A
    Certification : CE,ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets/month
    Delivery Time : 10-30 days
    • Product Details
    • Company Profile

    CFR1615 CFR1616 ASTM D6413 Vertical Flammability Testing Chamber For Fabric

    CFR1616 Fabric Vertical Flammability Testing Chamber


    ASTM D6413 Vertical Burn Flammability Test Chamber


    Application
    ASTM D6413 Vertical Burn Flammability Test Chamber to measuring the vertical flame spread for children’s sleepwear, fabrics, other textile materials or resilient filling materials used in upholstered furniture of textiles.
    Different accessories, burners and configurations are required for different standards. Please specify standards(s) required.


    Feature
    1. Stainless steel test cabinet with glass observation panel , durable and easy maintenance.
    2. 3 time recorders, one record firing time, one record after flame time and the other one record afterglow time(accuracy 0.01s).
    3. Control cabinet and burning box separate design which is safe and reliable.



    Key Specification

    ModelGT-C35A-1GT-C35A-2GT-C35A-3
    After flame time0-999.9s resolution 0.01s
    After glow time0-999.9s resolution 0.01s
    Burning time12s(adjustable)
    NozzleInner diameter11mm10 -0.5 mm
    Angle65 degree90 degree

    Dimension of

    specimen holder

    Out frame422*89 *2mm442*76*12.5 mmFlexible Foam holder
    Inner frame356 × 51 mm
    Testing flame height40±2mm38mm
    Distance between nozzle top and specimen17mm19mm
    Tearing weights

    54.4g, 113.4g,

    226.8g, 340.2g

    100g, 200g,

    300g, 475g

    no
    Power supplyAC 220V 50/60HZ
    Dimensions600 x 450 x 885mm (L x W x H)
    Weight44 kg
    Standards

    CFR1615

    CFR1616

    GB/T 5455

    ASTM D6413CALIF TB-117

    Accessories

    Standard accessories


    4pcsTearing weights
    1pcSample holder
    1pcFlame measuring scale
    1pcPower line

    Optional accessories


    OptionalΦ 11mm Nozzle
    Optional

    Φ10mm Nozzle


    OptionalCFR1615,1616 holder and tear weights
    OptionalASTM D6413 holder and tearing weights
    OptionalCALIF TB-117 holder

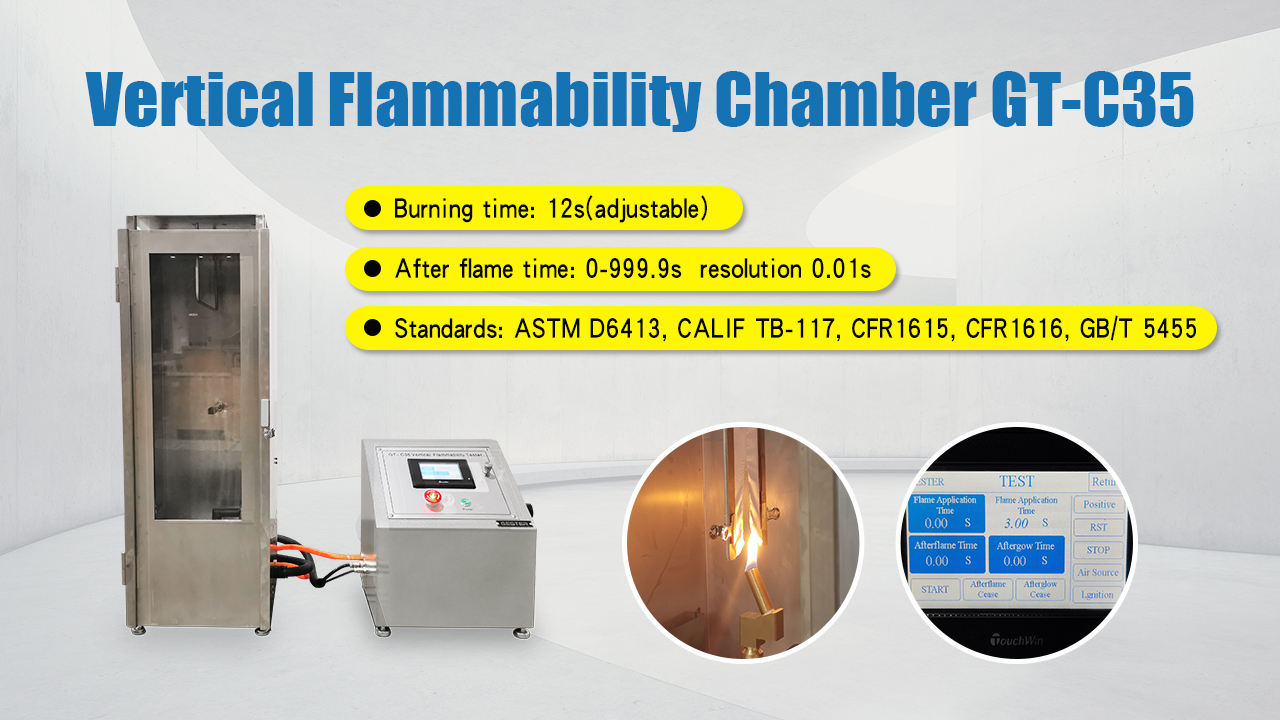

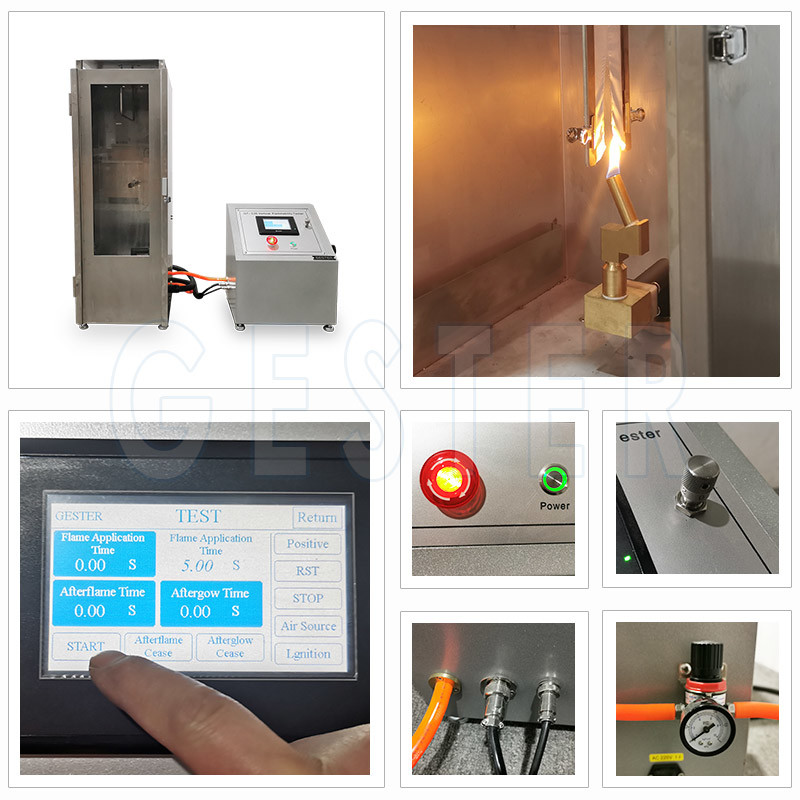

    Product Image

    CFR1615 CFR1616 ASTM D6413 Vertical Flammability Testing Chamber For Fabric
