    Touch Screen EN 12770 DIN Abrasion Tester For Shoe Testing

    Ask Lasest Price
    Brand Name : GESTER
    Model Number : GT-KB03B
    Certification : CE,ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets/month
    Delivery Time : 10-30 days
    Price : Factory Price
    • Product Details
    • Company Profile

    Touch Screen EN 12770 DIN Abrasion Tester For Shoe Testing

    Touch Screen Controlled EN 12770 Shoe Testing Machine DIN Abrasion Tester


    Application

    DIN Abrasion Tester is used to determine wear performance test of materials like elastic material, rubber, tires, conveyor belts, conveyor belts, shoe soles.

    Feature

    1. Body paint baking processed, easy for maintenance;
    2. Color touch-screen control, digital counting, automatically stop after test finished;
    3. Equipped with vacuum suction port device,automatically clean dust during test.

    Principle

    Under certain touching pressure and contact area, sample becomes a certain angle with sandpaper and determine its abrasion performance caused by a certain level of sandpaper. Pack sandpaper outside the surface of roller. The sample is pressed against the roller with sandpaper, which makes sample lateral moving along roller. Abrasion is caused under the other side of cylindrical specimens measuring the mass loss of sample value and count the wear amount by sample density.

    Standards
    DIN-53516, JIS-K6369, JIS K6264-2,GB/T 20991 section 8.3,GB/T 20265, GB20266-2006, GB/T 9867,
    EN ISO 20344 section 8.3, AS/NZS 2210.2 section 8.3, ISO 4649, SATRA TM174, BS903-A9 Method A,
    ASTM D5963, ISO20871, QB/T2884, SATRA TM 193, EN 12770
    Key Specification
    ModelGT-KB03B-1GT-KB03B-3
    Test positions13
    Control ModeTouch screen controlled
    Diameter of wear wheel150mm
    Specimen dimensionø16.2 mm x thickness 6-10 mm
    Specimen moving speed4.2 mm/r
    WeightsHolder 2.5N, can be used arbitrarily with optional accessory 2.5N, 5N (each for one)
    Wear wheel speed40±1rpm
    Inclination angle3°, Test piece support shaft of test piece becomes vertical angle with roller.
    Grit size of sandpaper#60
    Roller length460mm
    Wear stroke40m
    Power supply1∮AC 220V 50/60HZ 3A

    Accessories

    Standard accessories1Set2.5N weights
    1Set5N weights
    1pcP60# standard abrasive paper
    1pcStandard cutting die
    1pcMetal blob(Grinding head)
    1pcPower line
    1Set

    Vacuum cleaner

    (*Not supply, would suggest to purchase in your local.)

    Option accessoriesOptional

    GT-G203H Electronic balance (210g,accuracy 1mg)


    OptionalStandard rubber

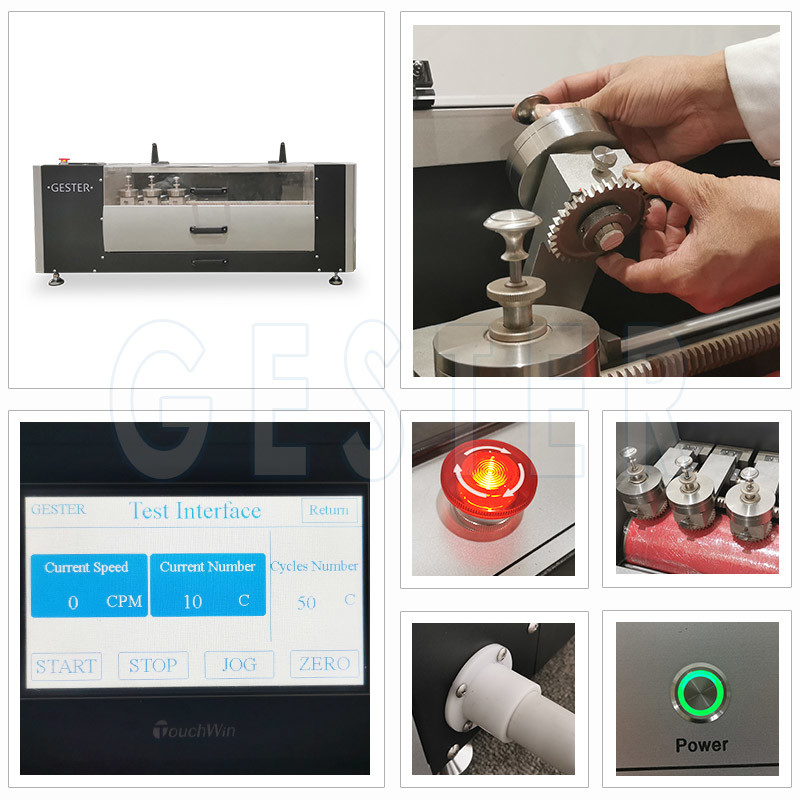

    Product Picture

    Touch Screen EN 12770 DIN Abrasion Tester For Shoe Testing
