    Low Temperature Automatic Footwear Whole Sole Ross Flex Tester

    Low Temperature ROSS Whole Sole Flexing Tester

    A. Application

    Low Temperature Automatic Ross Whole Sole Flexing Tester to determine right angle flexing risistance at low temperature for whole sole of rubber, PU, PVC, TPR foam and other materials. And inspect its degree of damage, cracking and reduced decline by continuously stretch and bending.


    B. Feature

    1. Materials of outer chamber: 2mm Double-sided color coated steel with power coated surface.
    2. Materials of inner chamber: using SUS304 stainless steel, seamless welded. Beside, the outer structure of the inner chamber is reinforced with 10mm steel plates to meet the structural strength requirements of the bending test.
    3. With vacuum glass observation window, more effecitive to observe the testing situation.
    4. Temperation control: adopt 7inch color touch screen with Chinese and English version, easy to operate.
    5. Equipped with 2 sets of mechanical compressor, two-stage compression refrigeration cycle can quick cooling up to specified inner temperature in the case of various fixture groips.
    6. The flexing system has separate controller with function of power off memory and automatical stop when test done.
    7. All the testing fixtures are made of SUS304 stainless steel or aluminum, have a good corrosion resistance and anti-rust property.


    C. Standards

    ASTM D1052,SATRA TM60,BS5131 : 2.1,GB 20265 section 4.2,ISO 5423, ISO4643,HG/T2411


    D. Key Specification
    ModelGT-KB05E
    ROSS Flexing ParametersFixture3sets
    Bending Angle90±2°
    Bending Speed0~110 cpm (Can be adjustable.)
    Winding Shaft Radius5±0.3mm
    Specimen DimensionWhole sole
    CounterLCD, 0~99,999,999
    Control SystemTouch Screen Programmable Microprocessor Control
    Temperature Range-40~100℃
    Temperature Accuracy+/-0.5℃
    Inside Chamber Capacity150L
    Chamber Material304 Stainless Steel and Painted
    Power SupplyAC220V 50/60HZ
    Dimension (W×D×H)110X170X180 cm
    WeightAbout 400 kg

    E. Accessories
    Standard accessories1pcChisel cutter (2mm)
    Optional accessories1pcChisel cutter (2.5mm) for ASTM D1052

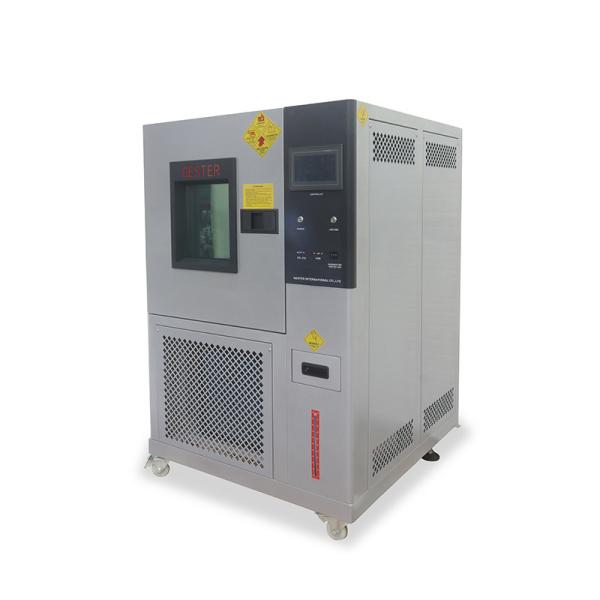

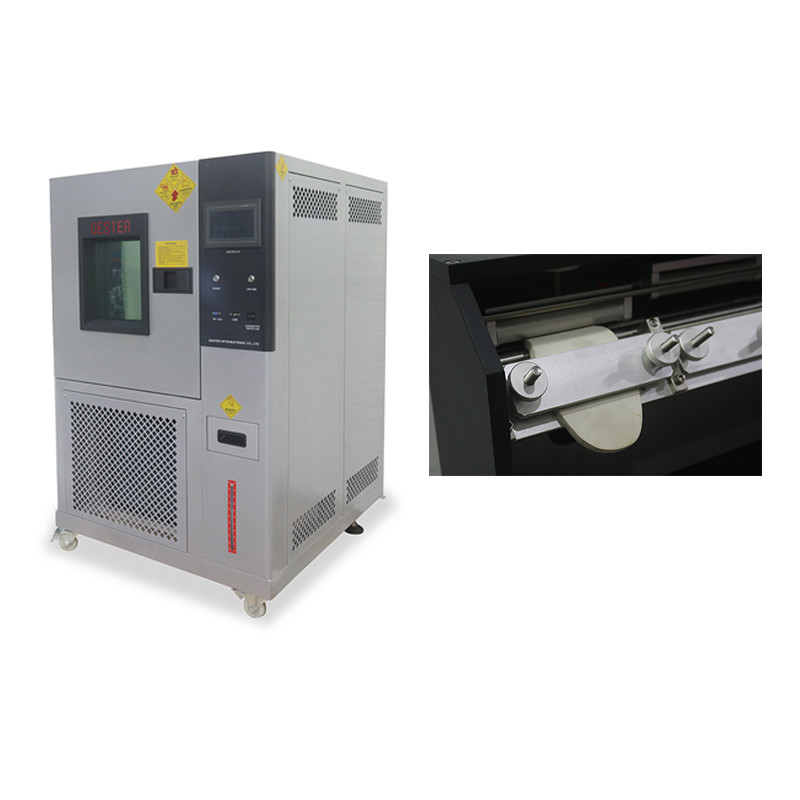

    F. Product Image

    Low Temperature Automatic Footwear Whole Sole Ross Flex Tester
